DMS Seals bonded seal supplier factory price for larger piston clearance

Company Advantages
1. DMS Seals is designed with different types by the designers. Having the fan on the top or side is the most common one because this type prevents droplets from hitting the heating elements. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
2. This product will give a huge impact on the look and attractiveness of space. Besides, it acts as an amazing gift with the ability to offer relaxation to people. Quality control of the seals is the basis for DMS Seals
3. The product features a large cooling surface reach. The evaporator can effectively absorb heat from the stuff kept inside, and as a result of the heat, the liquid refrigerant turns into vapor in the surface. DMS Seals provides professional design and production of high-grade o-ring seals
4. The product is free of wrinkles. The fiber is treated to feature high elasticity and strong frictional resistance to retain the shape of the fabric. DMS Seals takes the lead in grasping the development trend of the industry
5. This product is not likely to accumulate bacteria or mold. During the post-production stage, a kind of agent which is anti-mold and anti-bacterial is padded in it.

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

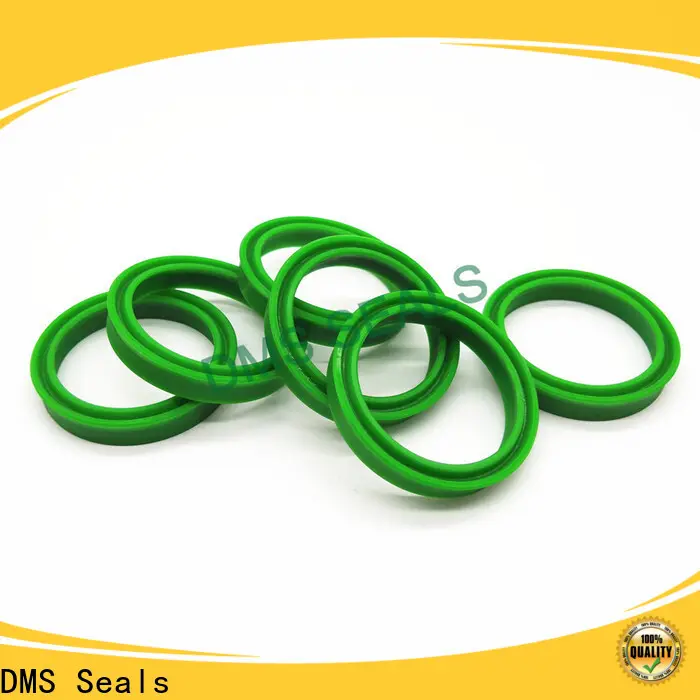

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. In bonded seal supplier business, Dms Seals Technology Co.,limited has significant advantages. Our plant is home to state-of-the-art machinery, including 3D design and CNC machines. This enables us to use the very latest manufacturing techniques to provide the best quality product.
2. Boasting a series of advanced manufacturing facilities, we are able to efficiently operate our business. These facilities are flexible enough, which allows us to manufacture products that adapt to market demands with minimal time.
3. We have imported new production facilities. They have streamlined and speeded our manufacturing process, making us possible to provide better and faster service and an expanded line of products. Dms Seals Technology Co.,limited supplies various kinds of hydraulic oil seal options which turn the vision of their client in reality. Inquire now!
