DMS Seals Bulk buy industrial mechanical seals manufacturer for piston and hydraulic cylinder

Company Advantages
1. DMS Seals is made by high-performance and durable components and parts. These include pumps, compressors, generators, and other welding and soldering parts.
2. DMS Seals is evaluated by process technology to ensure that sewing, construction and decoration meet the needs of the customer.
3. DMS Seals has an excellent design. It is designed by our experts with the highest quality materials and finishes.
4. The product has a wide range of characteristics, including requiring fewer mechanical parts over traditionally built alternatives, simple design, and tightly packed.
5. The product is super easy to clean. The product itself is naturally non-stick because of its extremely smooth surface done by glazing.
6. The product has the characteristics of good elasticity. The fabric used can retain its shape and structure when it is torn.
7. The product is more energy efficient. It has a natural energy-efficiency design by using premium wood materials that keep the sauna room exceptionally well insulated.
8. The product has attractive and bright colors. Treated with thermal dyeing, the coloring agents are thoroughly dissolved and mixed.
9. Dms Seals Technology Co.,limited's customer service can stay focused on its goals to achieve the right balance.
10. With its high-quality requirements for industrial mechanical seals , Dms Seals Technology Co.,limited gains trust from all its customers.
11. The popularity of industrial mechanical seals also can not be achieved without the contribution of service team.

1. Installation Recommendation

2. Application and properties

Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.



3. Standard materials

Sealing ring: filled PTFE

Elastomer: NBR / PU



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
40 - 1600mm	0 - 25MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others













5. Installation Dimensions

D H8	d h9	H	L+0.2	e	Order No.
40 45 50	30 35 40	15 15 15	16 16 16	7 7 7	DDMA40*30*16 DDMA45*35*16 DDMA50*40*16
56 63 65	46 53 55	15 15 15	16 16 16	7 7 7	DDMA56*46*16 DDMA63*53*16 DDMA65*55*16
70 75 80	60 65 70	15 15 15	16 16 16	7 7 7	DDMA70*60*16 DDMA75*65*16 DDMA80*70*16
85 90 95	75 80 85	15 15 15	16 16 16	7 7 7	DDMA85*75*16 DDMA90*80*16 DDMA95*85*16
100 105 115	90 95 105	15 15 15	16 16 16	7 7 7	DDMA100*90*16 DDMA105*95*16 DDMA115*105*16
120 125 130	110 113 118	15 15 15	16 16 16	7 10 10	DDMA120*110*16 DDMA125*113*16 DDMA130*118*16
135 140 145	123 128 133	15 15 15	16 16 16	10 10 10	DDMA135*123*16 DDMA140*128*16 DDMA145*133*16
150 155 160	138 143 148	15 15 15	16 16 16	10 10 10	DDMA150*138*16 DDMA155*143*16 DDMA160*148*16
170 180 190	158 168 178	15 15 15	16 16 16	10 10 10	DDMA170*158*16 DDMA180*168*16 DDMA190*178*16
200 210 220	188 198 208	15 15 15	16 16 16	10 10 10	DDMA200*188*16 DDMA210*198*16 DDMA220*208*16
225 235 240	213 223 228	15 15 15	16 16 16	10 10 10	DDMA225*213*16 DDMA235*223*16 DDMA240*228*16
250 265 275	238 253 263	15 15 15	16 16 16	10 10 10	DDMA250*238*16 DDMA265*253*16 DDMA275*263*16
280 290 300	268 278 288	15 15 15	16 16 16	10 10 15	DDMA280*268*16 DDMA290*278*16 DDMA300*288*16





D H8	d h9	H	L+0.2	e	Order No.
310 320 340	296 306 326	15 15 15	16 16 16	15 15 15	DDMA310*296*16 DDMA320*306*16 DDMA340*326*16
350 360 380	336 346 366	15 15 15	16 16 16	15 15 15	DDMA350*336*16 DDMA360*346*16 DDMA380*366*16
400 420 425	384 404 409	15 15 15	16 16 16	15 15 15	DDMA400*384*16 DDMA420*404*16 DDMA425*409*16
450 480 500	434 464 484	15 15 15	16 16 16	15 15 15	DDMA450*434*16 DDMA480*464*16 DDMA500*484*16
560 600 630	544 584 614	15 15 15	16 16 16	15 15 15	DDMA560*544*16 DDMA600*584*16 DDMA630*614*16

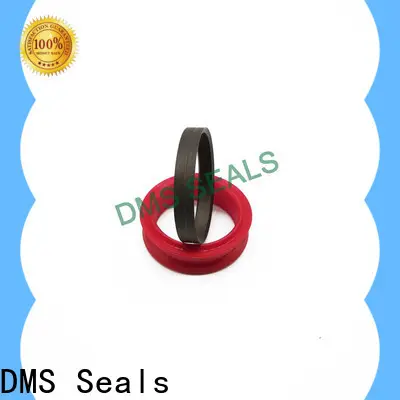

 6.Product Display

Company Features
1. Dms Seals Technology Co.,limited is one of the most dependable manufacturers of and has been highly appraised for its extensive expertise in designing and manufacturing. Dms Seals Technology Co.,limited is a reliable manufacturer and supplier of . We boast a wealth of experience in designing and manufacturing high-quality products. Dms Seals Technology Co.,limited is a specialist in both the design and manufacture of industrial mechanical seals with access to and long-standing relationships with the most advanced brands in this industry. Dms Seals Technology Co.,limited has the ability to manufacture and customize quality as customers require. We have rich experience in this industry.
2. Dms Seals Technology Co.,limited's R&D team is composed of a group of experienced professionals. Carrying out the most advanced technical methods better guarantees the quality of mechanical engineering seal . We have professional technicians to produce finest inflatable seal manufacturer . Dms Seals Technology Co.,limited is equipped with perfect testing and inspection equipment. Dms Seals Technology Co.,limited has its own applications and R&D to stay competitive in security seal supplier field.
3. With its rubber oil seals manufacturer as the guideline, DMS Seals will enhance its competitiveness. Inquire! Dms Seals Technology Co.,limited aims to create an international advanced split oil seal manufacturer supplier. Inquire! The consistent development of DMS Seals relies on not only the products but also the service supplied. Inquire! Dms Seals Technology Co.,limited is capable of providing one stop solution for flex seal manufacturer . Inquire!
