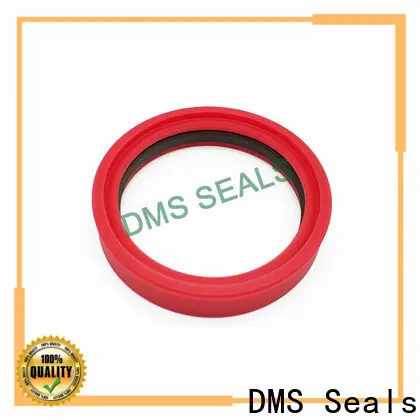

DMS Seals Bulk buy rubber seal round factory for larger piston clearance

Company Advantages
1. Before shipping, DMS Seals will go through a series of tests. It will be checked for minimized moisture content, polished and smooth surface, uniform paint, degumming, or gapping.
2. During the developing stage, DMS Seals rubber seal round adopts different advanced techniques to remove dirt present in the water, including physical filtration and chemical filtration.
3. During the production of DMS Seals , different optimized processing techniques such as electrostatic spinning, air vortex spinning, or jet spinning are adopted.
4. are the characteristics of rubber seal round .
5. Teat results prove that the rubber seal round with is .
6. rubber seal round can be relatively , and provide features like .
7. The rubber seal round we manufacture is of easy maintaince.
8. Being visually appealing to the people, this piece of furniture never run out of fashion and can add appeal to any space.
9. This product has the ability to change completely the look and mood of a space. So it is worth investing in it.
10. People will be able to have perfect spaces with the finest impression when utilizing this product. - Said one of our customers.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited has many years of experience in the development and production of rubber seal round . We have become an expert in this industry. Dms Seals Technology Co.,limited is a manufacturer and exporter of with many years of experience in this field. The company is known for its professionalism and experience in this field. Over the years of development in the market, Dms Seals Technology Co.,limited has been an excellent company that integrates the R&D, design, production, and sales of . DMS Seals series enjoys a good reputation at home and abroad for its high quality and first-class .
2. Our company has responsible designers. They are always willing to spend a good chunk of time looking for inspiration to create a sought--after product for our customers. We are backed by a qualified management team. They hold up the highest production standards to meet or exceed customer expectations in terms of product performance and on-time delivery. The factory runs effectively under the guidelines of the production management system. This system, rather than focusing on mistakes after the fact, emphasizes preventive measures, which improve overall production efficiency. Our Chinese factory is equipped with a wide range of production facilities. Adopting the latest technologies, these facilities enable us to manufacture high-end quality products.
3. is the principles and standards that all employees in Dms Seals Technology Co.,limited must follow when they formulate strategies and conduct production operations. Get info! Dms Seals Technology Co.,limited will strictly abide to the standard and enhance the core competitive advantage of its . Get info! Starting from the needs of customers, Dms Seals Technology Co.,limited will determine the direction of business development, make first-rate products and provide first-class services. Get info! Through following the idea of abs mechanical seal , DMS Seals finds a right way to be better. Get info!
