DMS Seals cable seal manufacturers price for larger piston clearance

Company Advantages
1. There will be multiple choices for sizes and shapes of cable seal manufacturers .
2. Dms Seals Technology Co.,limited ensures that all the materials we use for cable seal manufacturers are safe and environmentally friendly.
3. Well-select material are used for our cable seal manufacturers .
4. The product works stably under the reversible circuits. Its forward and reverse contactors are equipped with electric interlocks and mechanical interlocks to ensure smooth operation.
5. The product features remarkable loading strength. Its materials, mainly metals, have desired mechanical properties to endure heavy-duty use.
6. The product is able to withstand the most rigorous industrial conditions. Made from new materials, like improved steel alloys and other composites, it is durable enough.
7. The product has reliable working performance. It is able to withstand impact and high loading working conditions without sacrificing its efficiency.
8. This product features good thermal comfort. It will help regulate body temperature, improving thermal comfort and the quality of sleep.
9. This product demonstrates a comfort wearing experience due to it being able to manage an optimum heat and moisture balance.
10. This product plays a great role in space design. It can cover the unused area and be placed beautifully as per the space available.
11. This product can be an asset to those with sensitivities and allergies who are in need of green and hypoallergenic furniture.
12. The product has made many contributions to improving the visual appearance of the space and will make the space worthy of praise.

1. Installation Recommendation

2. Application and properties

Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.



3. Standard materials

Sealing ring: filled PTFE

Elastomer: NBR / PU



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
40 - 1600mm	0 - 25MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

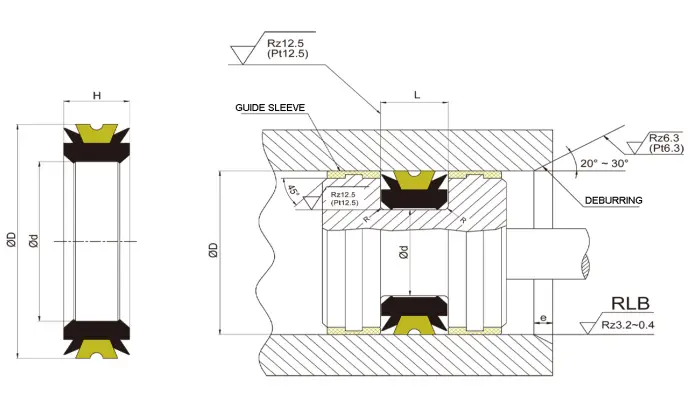

5. Installation Dimensions

D H8	d h9	H	L+0.2	e	Order No.
40 45 50	30 35 40	15 15 15	16 16 16	7 7 7	DDMA40*30*16 DDMA45*35*16 DDMA50*40*16
56 63 65	46 53 55	15 15 15	16 16 16	7 7 7	DDMA56*46*16 DDMA63*53*16 DDMA65*55*16
70 75 80	60 65 70	15 15 15	16 16 16	7 7 7	DDMA70*60*16 DDMA75*65*16 DDMA80*70*16
85 90 95	75 80 85	15 15 15	16 16 16	7 7 7	DDMA85*75*16 DDMA90*80*16 DDMA95*85*16
100 105 115	90 95 105	15 15 15	16 16 16	7 7 7	DDMA100*90*16 DDMA105*95*16 DDMA115*105*16
120 125 130	110 113 118	15 15 15	16 16 16	7 10 10	DDMA120*110*16 DDMA125*113*16 DDMA130*118*16
135 140 145	123 128 133	15 15 15	16 16 16	10 10 10	DDMA135*123*16 DDMA140*128*16 DDMA145*133*16
150 155 160	138 143 148	15 15 15	16 16 16	10 10 10	DDMA150*138*16 DDMA155*143*16 DDMA160*148*16
170 180 190	158 168 178	15 15 15	16 16 16	10 10 10	DDMA170*158*16 DDMA180*168*16 DDMA190*178*16
200 210 220	188 198 208	15 15 15	16 16 16	10 10 10	DDMA200*188*16 DDMA210*198*16 DDMA220*208*16
225 235 240	213 223 228	15 15 15	16 16 16	10 10 10	DDMA225*213*16 DDMA235*223*16 DDMA240*228*16
250 265 275	238 253 263	15 15 15	16 16 16	10 10 10	DDMA250*238*16 DDMA265*253*16 DDMA275*263*16
280 290 300	268 278 288	15 15 15	16 16 16	10 10 15	DDMA280*268*16 DDMA290*278*16 DDMA300*288*16





D H8	d h9	H	L+0.2	e	Order No.
310 320 340	296 306 326	15 15 15	16 16 16	15 15 15	DDMA310*296*16 DDMA320*306*16 DDMA340*326*16
350 360 380	336 346 366	15 15 15	16 16 16	15 15 15	DDMA350*336*16 DDMA360*346*16 DDMA380*366*16
400 420 425	384 404 409	15 15 15	16 16 16	15 15 15	DDMA400*384*16 DDMA420*404*16 DDMA425*409*16
450 480 500	434 464 484	15 15 15	16 16 16	15 15 15	DDMA450*434*16 DDMA480*464*16 DDMA500*484*16
560 600 630	544 584 614	15 15 15	16 16 16	15 15 15	DDMA560*544*16 DDMA600*584*16 DDMA630*614*16

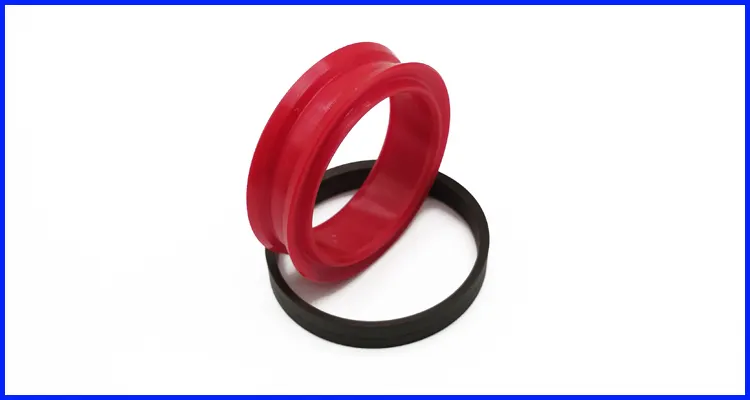

 6.Product Display
