DMS Seals cup seals for hydraulic cylinders for sale for pressure work and sliding high speed occasions

Company Advantages
1. Our company designes DMS Seals with innovative thinking.
2. DMS Seals cup seals for hydraulic cylinders is scientifically designed based on the experience of users.
3. The material used for cup seals for hydraulic cylinders makes its life span longer than others with normal material.
4. Due to our strict quality control system, the quality of our products is guaranteed.
5. In order to meet customer expectations and industry standards, products must undergo rigorous quality inspection before leaving the factory.
6. This product is safe and durable with long service life.
7. DMS Seals manufactures cup seals for hydraulic cylinders with supreme quality.
8. Dms Seals Technology Co.,limited is also skilled at manufacturing high quality cup seals for hydraulic cylinders .
9. Dms Seals Technology Co.,limited succeeds in our stable high quality for cup seals for hydraulic cylinders .
10. Dms Seals Technology Co.,limited employees experienced staff to guarantee the quality of cup seals for hydraulic cylinders .

Item	Specifications

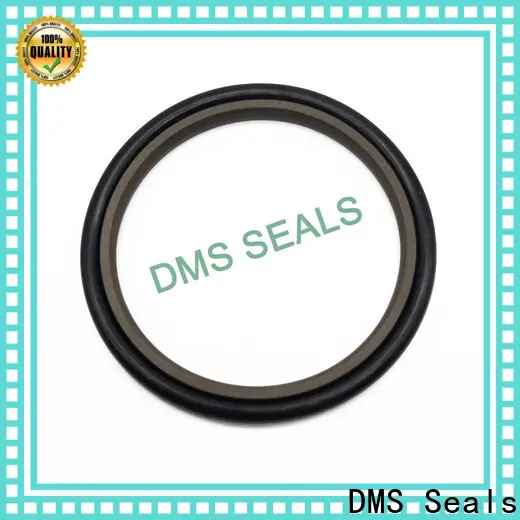

Product Name	Mechanical Heavy Duty Opposite Step Seal GSJ
Products Category	Hydraulic seals, Oil seals, O-Rings
Material	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Propeties	High temperature, low temperature, high pressure, low pressure,friction resistance
Sizes	Standard and customize
Medium	Hydraulic oil,  anti-fire fluid, water, gas etc
Application	excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.

Precautions:

1. In general, this seal is ideal as a buffer seal. Not recommended for use as a single seal. If the piston rod retracts faster than it extends, it can be used alone, but must be combined with a double-lip wiper.

2. If the other parameters of the O-ring are qualified, the diameter of the ring is 1~2% larger than the value listed in the sample, which will not affect the use.

3. When installing, the sealing ring can be bent into a heart shape and put into the groove, but there must be no creases.

4. Pay attention to the direction when installing this seal, the gap corresponds to the direction of oil pressure

5. The hardness value of the piston rod surface is recommended to be greater than HRC40

NO.	SIZE	NO.	SIZE
1	GSJ20*27.3*3.2	48	GSJ135*150.1*6.3
2	GSJ20*30.7*4.2	49	GSJ135*155.5*8.1
3	GSJ22*29.3*3.2	50	GSJ140*155.1*6.3
4	GSJ22*32.7*4.2	51	GSJ140*160.5*8.1
5	GSJ25*32.3*3.2	52	GSJ145*160.1*6.3
6	GSJ25*35.7*4.2	53	GSJ150*165.1*6.3
7	GSJ28*38.7*4.2	54	GSJ150*170.5*8.1
8	GSJ30*40.7*4.2	55	GSJ160*175.1*6.3
9	GSJ32*42.7*4.2	56	GSJ160*180.5*8.1
10	GSJ35*45.7*4.2	57	GSJ165*180.1*6.3
11	GSJ36*46.7*4.2	58	GSJ170*185.1*6.3
12	GSJ40*50.7*4.2	59	GSJ170*190.5*8.1
13	GSJ40*55.1*6.3	60	GSJ180*195.1*6.3
14	GSJ45*55.7*4.2	61	GSJ180*200.5*8.1
15	GSJ45*60.1*6.3	62	GSJ190*205.1*6.3
16	GSJ50*60.7*4.2	63	GSJ190*210.5*8.1
17	GSJ50*65.1*6.3	64	GSJ200*220.5*8.1
18	GSJ55*65.7*4.2	65	GSJ210*230.5*8.1
19	GSJ55*70.1*6.3	66	GSJ220*240.5*8.1
20	GSJ60*70.7*4.2	67	GSJ230*250.5*8.1
21	GSJ60*75.1*6.3	68	GSJ240*260.5*8.1
22	GSJ63*73.7*4.2	69	GSJ250*270.5*8.1
23	GSJ63*78.1*6.3	70	GSJ260*284*8.1
24	GSJ65*80.1*6.3	71	GSJ270*294*8.1
25	GSJ70*80.7*4.2	72	GSJ280*304*8.1
26	GSJ70*85.1*6.3	73	GSJ290*314*8.1
27	GSJ75*90.1*6.3	74	GSJ300*324*8.1
28	GSJ80*95.1*6.3	75	GSJ310*334*8.1
29	GSJ85*100.1*6.3	76	GSJ320*344*8.1
30	GSJ90*105.1*6.3	77	GSJ330*354*8.1
31	GSJ90*110.5*8.1	78	GSJ340*364*8.1
32	GSJ95*110.1*6.3	79	GSJ350*374*8.1
33	GSJ95*115.5*8.1	80	GSJ360*384*8.1
34	GSJ100*115.1*6.3	81	GSJ370*394*8.1
35	GSJ100*120.5*8.1	82	GSJ380*404*8.1
36	GSJ105*120.1*6.3	83	GSJ390*414*8.1
37	GSJ105*125.5*8.1	84	GSJ400*424*8.1
38	GSJ110*125.1*6.3	85	GSJ410*434*8.1
39	GSJ110*130.5*8.1	86	GSJ420*444*8.1
40	GSJ115*130.1*6.3	87	GSJ430*454*8.1
41	GSJ115*135.5*8.1	88	GSJ440*464*8.1
42	GSJ120*135.1*6.3	89	GSJ450*474*8.1
43	GSJ120*140.5*8.1	90	GSJ460*484*8.1
44	GSJ125*140.1*6.3	91	GSJ470*494*8.1
45	GSJ125*145.5*8.1	92	GSJ480*504*8.1
46	GSJ130*145.1*6.3	93	GSJ490*514*8.1
47	GSJ130*150.5*8.1	94	GSJ500*524*8.1

Company Features
1. The popularity of cup seals for hydraulic cylinders made by DMS Seals brand has been increasing rapidly. DMS Seals stands out among other manufacturers in the industry. Dms Seals Technology Co.,limited is a brand-new high-grade hydraulic cylinder shaft seals manufacturer. Dms Seals Technology Co.,limited mainly supplies full range of high quality buffer seal hydraulic . Dms Seals Technology Co.,limited is a famous oil seal manufacturer in China.
2. Our professional equipment allows us to fabricate such . With advanced technology applied in hydraulic cylinder gaskets , we take the lead in this industry. Our technology takes the lead in the industry of pneumatic rod seals . The cutting-edge technology adopted in hydraulic seals companies helps us win more and more customers.
3. In the long run, DMS Seals will always create value for business partners. Get an offer! Our goal is to produce the best possible products to serve our customers. We have abundant experience in selecting and sourcing high-quality materials and optimizing the production workmanship. We always make full preparations for customers. Get an offer!

DMS Seals cup seals for hydraulic cylinders for sale for pressure work and sliding high speed occasions

cup seals for hydraulic cylinders

Type:
