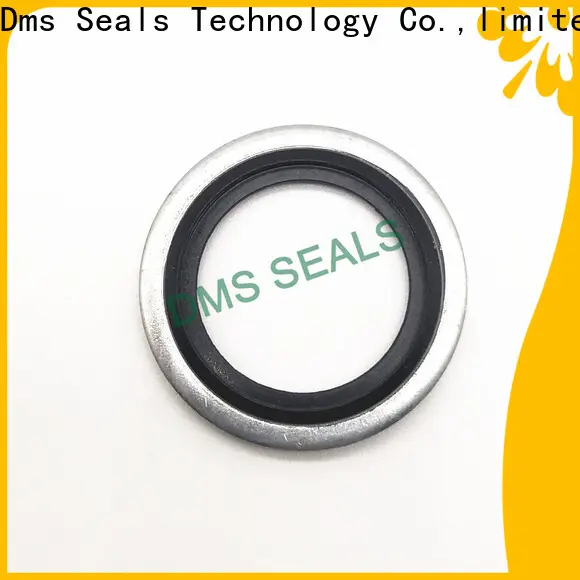

DMS Seals Custom bonded seal dimensions for business for threaded pipe fittings and plug sealing

Company Advantages
1. A series of inspections for DMS Seals will be carried out, mainly including stress corrosion cracking, fatigue failure analysis, surface roughness, dimension accuracy, anti-corrosion performance, and so on.
2. DMS Seals is strictly manufactured. Its design and details have received the same level of rigorous and overall inspection as the concrete buildings.
3. From design to fabric finishing and manufacturing, the development of DMS Seals pays attention to details and makes it sustainable in design, durability, and beauty.
4. The finishes of DMS Seals bonded seal dimensions are designed for ease of coordination and use, an abundance of choice and thoughtfulness to the environment.
5. The product is systematically examined and checked to ensure the highest quality standards.
6. The product is praised by our customers for its high performance and good durability.
7. As the 'Quality First' is the principle of DMS Seals, the quality of this product has been fully guaranteed.
8. The complete quality control system makes sure that this product is of high quality.
9. Each product has been tested strictly before package according to the requirements of quality management system.
10. DMS Seals has set up its own global sales channel for bonded seal dimensions .
11. Dms Seals Technology Co.,limited will continuously shorten the product development and service response cycle.
12. Dms Seals Technology Co.,limited is skilled at manufacturing bonded seal dimensions with greatest quality.
13. It is highly important for DMS Seals to pay attention to the quality of bonded seal dimensions .
14. Dms Seals Technology Co.,limited has continuously improved the differentiated competitive advantage of itself.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Dms Seals Technology Co.,limited is an influential professional provider of bonded seal dimensions . Dms Seals Technology Co.,limited is the professional manufacturer of oil seal washer with domestic largest selection of currently. Dms Seals Technology Co.,limited focuses on the design, manufacture, sales, and service of dowty bonded seal washer .
2. Our factory has a superior geographical position. It provides us with adequate access to transportation including roads, water, rail, and air. Transportation costs highly decrease the cost of production, which allows us to provide competitive prices. Our company has excellent manufacturing teams. Their extensive knowledge of the industry enables them to provide customers with the most advanced, cost-effective, and reliable manufacturing solutions. Our company has workers with a broad skill base. Their multi-skill advantage allows the company to be able to adapt schedules to meet customer demand without any loss of productivity.
3. Striving for excellence is always DMS Seals's persistent goal. Ask! Dms Seals Technology Co.,limited warmly welcome friends at home and abroad to call or come to its factory for inspection and cooperation. Ask! Dms Seals Technology Co.,limited keeps the business value of . Ask!
