DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

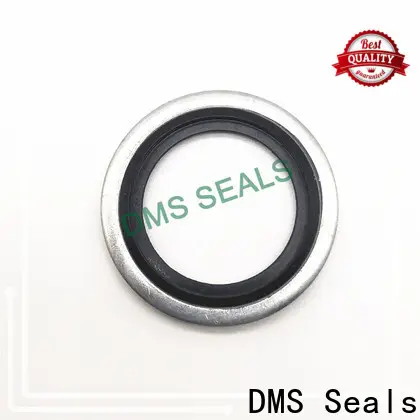

DMS Seals Custom bonded seal kit supply for fast and automatic installation
Diameter Range:
6.5~60.58
Pressure Range:
40MPa
Temperature Range:
-30℃ +100℃
Speed:
-
Medium:
hydraulic oil
Enterprise Strength
- With an excellent logistics management system, Dms Seals is committed to providing efficient delivery for customers, so as to improve their satisfaction with our company.
1. The newly launched products by Dms Seals Technology Co.,limited were all completed by the internationally renowned design company.
2. In Dms Seals Technology Co.,limited, you can have multiple choices for shapes of bonded seal kit .
3. is a new type of bonded seal kit made of advanced materials.
4. The improved is light in weight and therefore easy to handle.
5. Our bonded seal kit can be in high productivity all round the clock.
6. With advantage in , bonded seal kit can be widely applicable to .
7. The product is featured by the first - class quality and stable performance.
8. Based on the rigorous inspection of the entire process, the quality is 100% guaranteed.
9. The product is offered after testing against various quality measures.
10. With many excellent characteristics and competitive price, the product has won good reputaiton among its customers all over the world.
11. The development of the product keeps track with the current industry trends.
12. With the widespread reputation, the product will be applied more in the future.
1. Applicability of the Bonded Seal Washer
The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.
2. Figure
2. GM500 Self-centering range metric dimensions
| Metric Thread size | Inside Diameter | Outside Diameter | Metal thickness | Metal washer ID | ID between self centering |
| C | A | E | B | F | |
| PPM6 | 6,50 | 10,00 | 1,00 | 8,00 | 5,60 |
| PPM8 | 8,5 | 14,00 | 1,00 | 10,40 | 6,40 |
| PPM10 | 10,50 | 16,00 | 2,00 | 12,40 | 8,05 |
| PPM12 | 12,50 | 18,00 | 1,50 | 14,10 | 9,73 |
| PPM14 | 14,5 | 20,00 | 2,00 | 16,40 | 11,38 |
| PPM16 | 16,5 | 22,00 | 2,00 | 18,40 | 13,41 |
| PPM18 | 18,5 | 25,00 | 2,00 | 20,40 | 14,76 |
| PPM20 | 20,5 | 28,00 | 2,00 | 22,50 | 16,76 |
| PPM22 | 22,5 | 30,00 | 2,00 | 24,40 | 18,74 |
| PPM24 | 24,5 | 32,00 | 2,00 | 26,40 | 20,11 |
| PPM27 | 27,2 | 35,00 | 2,00 | 29,40 | 23,30 |
| PPM30 | 30,7 | 38,00 | 2,00 | 32,40 | 25,70 |
| PPM33 | 33,5 | 42,00 | 2,00 | 35,40 | 28,70 |
| PPM36 | 36.7 | 46,00 | 2,00 | 38,70 | 31.1 |
| PPM39 | 41.9 | 51,00 | 2,00 | 40,00 | 34.1 |
| PPM42 | 42.7 | 53,00 | 2,00 | 45,70 | 38.7 |
| PPM48 | 48.7 | 60,00 | 2,00 | 51,70 | 43.7 |
| PPM52 | 52.9 | 66,00 | 2,00 | 56,40 | 46 |
| PPM60 | 60.9 | 75,00 | 2,00 | 63,00 | - |
3. GM500 Self-centering range inch dimensions, BSP
| BSP thread size | Inside Diameter | Outside Diameter | Metal thickness | Metal washer ID | ID between self centering |
| C | A | E | B | F | |
| 1/8 BSP | 10,37 | 15,88 | 2,00 | 11,84 | 8,26 |
| 1/4 BSP | 13,74 | 20,57 | 2,00 | 15,21 | 11,18 |
| 3/8 BSP | 17,28 | 23,80 | 2,00 | 18,75 | 14,76 |
| 1/2 BSP | 21,54 | 28,58 | 2,50 | 23,01 | 18,24 |
| 3/4 BSP | 27,05 | 34,93 | 2,50 | 28,53 | 23,83 |
| 1 BSP | 33,89 | 42,80 | 3,20 | 36,88 | 29,92 |
| 1 1/4 BSP | 42,93 | 52,38 | 3,20 | 45,93 | 38,45 |
| 1 1/2 BSP | 48,44 | 58,60 | 3,20 | 51,39 | 44,45 |
| 2 BSP | 60,58 | 73,03 | 3,20 | 63,63 | 56,26 |
Best quality bonded seal wholesale, welcome to contact the leading bonded seal rings and bonded washers suppliers.
Company Features
1. Dms Seals Technology Co.,limited includes a massive factory foundation with a massive manufacturing capacity of producing bonded seal kit . Dms Seals Technology Co.,limited is a leading manufacturer of dowty oil seal in China. Dms Seals Technology Co.,limited includes a massive factory foundation with a massive manufacturing capacity of producing dowty o rings . DMS Seals has remained excellent in the m14 dowty washer industry for decades. Dms Seals Technology Co.,limited is regarded as a trusted maker of dowty bonded washer by clients.
2. The dowty seal pressure rating is made by highly proficient technology. Dms Seals Technology Co.,limited has a very systematic product research and development capabilities. Every step including the product designing, material selecting, production and management are strictly controlled in Dms Seals Technology Co.,limited.
3. The ultimate goal of Dms Seals Technology Co.,limited is to achieve continuous improvement in product quality and service. Call now! This brand is now a global renowned speaker for self centering bonded seal . Call now! For many years, Dms Seals Technology Co.,limited has been adhering to the concept of 'to create maximum benefits for the customer'. Call now! Dms Seals Technology Co.,limited is successful through continuous efforts to provide greater value to customers. Call now! Getting high reputation is the continuous goal of Dms Seals Technology Co.,limited. Call now!
