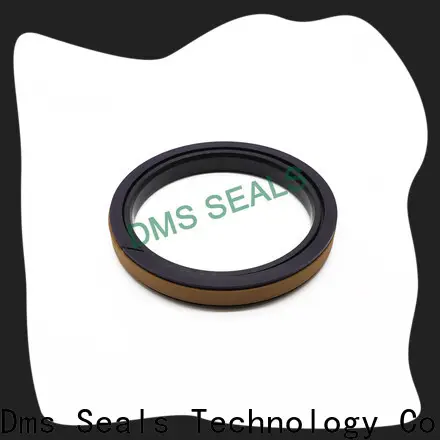

DMS Seals Custom hyd cylinder seal kit manufacturers for light and medium hydraulic systems

Company Advantages
1. The design of DMS Seals takes many factors into account. These factors are fabric flexibility (ease of bending), compressibility (ease of squeezing), extensibility (ease of stretching), resiliency (ability to recover from deformation), etc.
2. DMS Seals will go through various kinds of checks. These checks include loose and uncut threads, construction, garment labeling, and workmanship & measurement after washing/non-wash.
3. The materials used in DMS Seals hyd cylinder seal kit are carefully selected. Materials that are sharp or pointed, or may penetrate the bottom and side, or contain irritating substances are seriously excluded out during materials procurement.
4. This product complies with industrial quality standards.
5. The effective quality control addresses the product defects.
6. The high performance of the product contributes to the reliability.
7. This streamlined product helps reduce the environmental footprint. It can reduce scrap, use less energy, and help manufacturers save real money.
8. This product has good performance in normal use. A good fit is achieved because the subject will feel comfortable and can perform the task well.
9. It adds brand value. The positive image on it will strengthen the brand name, thereby increasing customer loyalty, increasing sales and ultimately infiltrating overall profitability.
10. Being hypoallergenic, it will enhance the quality of one's sleep by protecting him or her from harmful irritants typically seen in a bedroom environment.
11. One benefit people can find in this product is its affordability. It is way cheaper than a standard house, making home ownership a possibility to more people.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited has been called as an expert in the industry, with years of experience and expertise in the manufacturing of . Dms Seals Technology Co.,limited is a reliable manufacturer of . We pride ourselves on our ability to leverage in-depth product knowledge to help customers solve their problems. Dms Seals Technology Co.,limited excels in manufacturing . We have become one of the most competitive manufacturers with regard to manufacturing high-quality products. After years of hard work, Dms Seals Technology Co.,limited has developed into a production and export base of hyd cylinder seal kit in China. Having been involving in the R&D, design, and production of , Dms Seals Technology Co.,limited has become the first choice for many customers.
2. DMS Seals has powerful manufacturing piston seals abilities. Our factory has a range of advanced production equipment that can make better spareage piston seals . DMS Seals focuses on the research and development of the hydraulic cylinder shaft seals .
3. We will actively promote sound environmental management and sustainable development. We will use and promote advanced technological production facilities to reduce the environmental negative influence. High standards, sophistication, and zero defect are what we pursue. The whole staff is working hard to improve the product quality from the material selection to the final stage. Get quote! We are ready to provide high quality . Get quote! Through inventive processes, we provide unmatched value to our customers. We foster creative work environments where we always challenge ourselves to improve our processes and procedures. Get quote! We are committed to being an ethical, value-based corporate citizen operating in a fair and legal way in every market, through respecting human rights, operating through a sustainable supply chain. Get quote!
