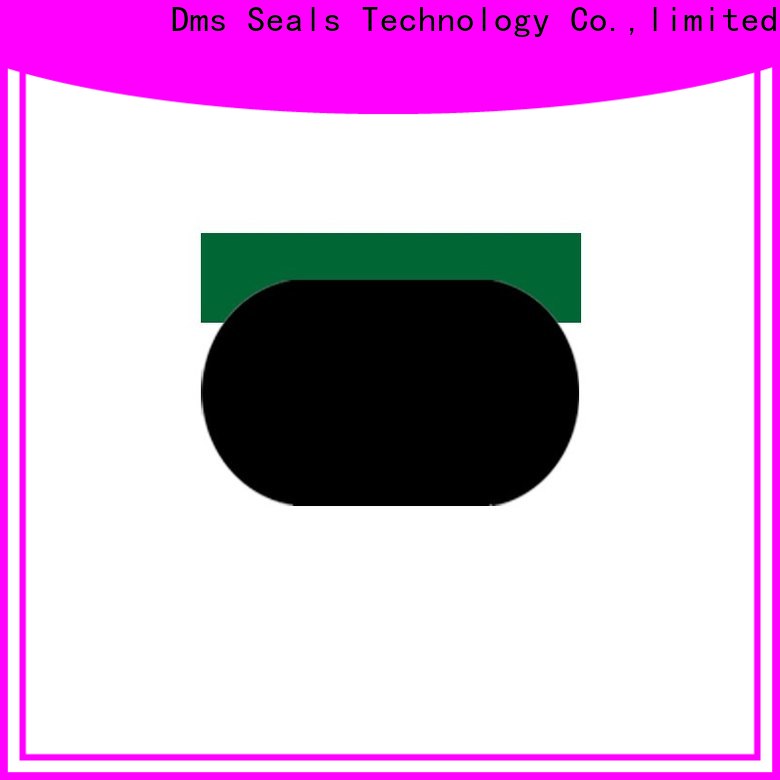

DMS Seals Custom hydraulic cylinder piston seals manufacturer for light and medium hydraulic systems 1

DMS Seals Custom hydraulic cylinder piston seals manufacturer for light and medium hydraulic systems 2

DMS Seals Custom hydraulic cylinder piston seals manufacturer for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Details

With a focus on quality, Dms Seals pays great attention to the details of Oil Seal Manufacturer.Dms Seals carries out strict quality monitoring and cost control on each production link of Oil Seal Manufacturer, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.

Enterprise Strength

Dms Seals is committed to providing quality, efficient, and convenient services for customers.

Company Advantages
1. hydraulic cylinder piston seals outrival other similar products due to its design.
2. Our hydraulic cylinder piston seals are greatly appreciated in other markets for its .
3. Adherence to design principle of makes possible the use of hydraulic cylinder piston seals more .
4. It is tear resistant. A stronger thread is used to improve the strength of the fabric and makes any tears or holes less likely to spread and become bigger.
5. The product features the desired reliability. Its solid housing adopts high-performance components and insulation materials to prevent any shock.
6. The product is characterized by its excellent sealing effect. It tightly seals up the mating face, cutting off any leakage passages to exclude any medium.
7. Stability is one of its advantages. It does not tend to break down or be damaged by emergencies, such as instantaneous change of current or sudden power failure.
8. This product can be placed in convenience stores, restaurants, grocery stores, retailers, schools and any other location to educate or convince the consumer.
9. Dms Seals Technology Co.,limited has large scale production.
10. Dms Seals Technology Co.,limited has made hard work and progressive development since foundation.
11. Dms Seals Technology Co.,limited has the first-class design level and quality engineering construction management.

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

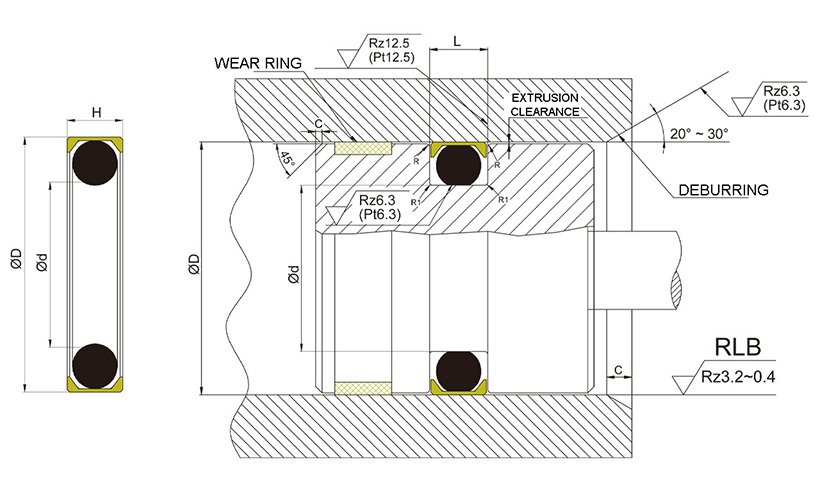

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions

Company Features
1. DMS Seals is a professional supplier in the design, development and production of hydraulic cylinder piston seals . Dms Seals Technology Co.,limited is not only experienced but also professional in manufacturing oil seal hydraulic . Dms Seals Technology Co.,limited now ranks top in R&D and produce of air piston seal . Dms Seals Technology Co.,limited is a professional and experienced company in hydraulic seals companies field.
2. To be more competitive, DMS Seals has introduced advanced technology to produce cylinder rod seal . With excellent technology strength, Dms Seals Technology Co.,limited is deeply trusted by customers. Complete production and testing equipment are owned by DMS Seals's factory.
3. We try to achieve our responsible and sustainable practices in our business, from our own quality control to the relationships we have with our suppliers. We have explored many ways to upgrade our production procedure. They are mainly upgrading or replacing facilities to achieve greener production and investing in clean and renewable resources. We have clear commitments to sustainability. For example, we are actively working with climate change. We mainly achieve this by greatly reducing CO2 emissions.

DMS Seals Custom hydraulic cylinder piston seals manufacturer for light and medium hydraulic systems

hydraulic cylinder piston seals

Type:

DMS Seals Custom hydraulic cylinder piston seals manufacturer for light and medium hydraulic systems 6

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
