DMS Seals Custom hydraulic motor seal kit factory for sale

Company Advantages
1. Quality is valued in DMS Seals manufacture. It is tested against relevant standards such as BS EN 581, NF D 60-300-2, EN-1335 & BIFMA, and EN1728& EN22520.
2. Quality workmanship in DMS Seals will be checked carefully. The seaming, stitching, pressing, and washing workmanship will be all carried out by professional workers with the aid of advanced manufacturing machines.
3. DMS Seals hydraulic motor seal kit is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration.
4. The value of hydraulic motor seal kit are recognized by most industry insider.
5. DMS Seals is famous for the hydraulic motor seal kit with .
6. That DMS Seals is unique in the hydraulic motor seal kit market is the design of .
7. hydraulic motor seal kit produced by Dms Seals Technology Co.,limited has been paid great attention because of its .
8. The application prospect of the product is promising thanks to high customer satisfaction.
9. The product caters to different market needs, leading to a more promising market application prospect.
10. The explosive growth of market demand is conducive to the development of this product.
11. It is widely used with a promising application prospect and tremendous market potential.
12. According to market data analysis, the product has unlimited potential.

1. Installation Recommendation

2. Application and properties

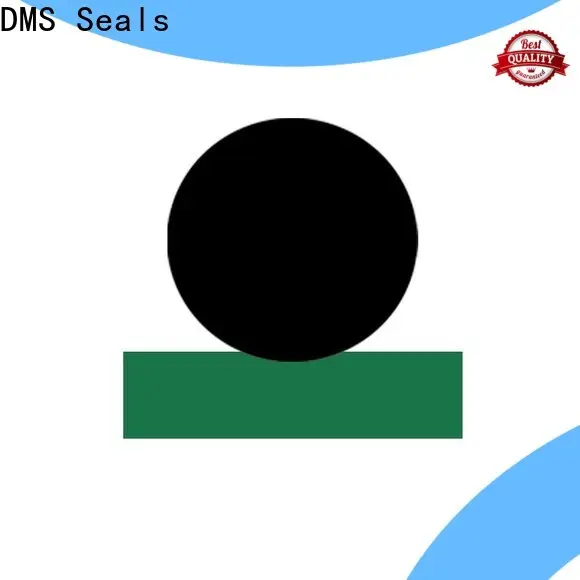

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. DMS Seals is quality-oriented and has gained wide market in hydraulic motor seal kit field. Ranking top in wholesale hydraulic seals industry, DMS Seals is popular in the market. Dms Seals Technology Co.,limited is highly appraised as a reliable supplier and manufacturer of pneumatic cylinder rod seal . Dms Seals Technology Co.,limited has always devoted itself to the research, development and production of superior metric hydraulic seals .
2. Dms Seals Technology Co.,limited sets up a professional R&D team for best case hydraulic seal kits . Dms Seals Technology Co.,limited has sound quality assurance system, advanced detection equipment and strict quality management system. Dms Seals Technology Co.,limited goes back to its research teams and crafts new products. Only through independent technology innovation can DMS Seals be more competitive in 4 inch hydraulic cylinder seal kit industry.
3. Dms Seals Technology Co.,limited upholds professional manufacturing and dedicated service spirit. Get price! For the mission of being the leading supplier, DMS Seals has been striving to use the most advanced technology to produce cheap oil seals . Get price! DMS Seals has a lofty aspiration to be a pioneer in producing hallite hydraulic seals . Get price! Our ultimate goal is to be a fashionable and modern fluoro rubber seal supplier. Get price!

DMS Seals Custom hydraulic motor seal kit factory for sale

hydraulic motor seal kit

Type:
