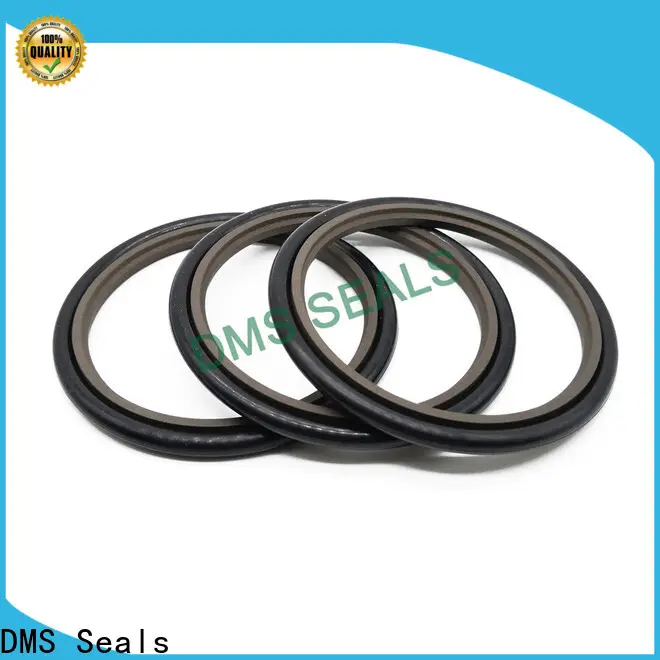

DMS Seals Custom made mechanical seal face material selection factory for piston and hydraulic cylinder 1

DMS Seals Custom made mechanical seal face material selection factory for piston and hydraulic cylinder 2

DMS Seals Custom made mechanical seal face material selection factory for piston and hydraulic cylinder

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. The designing of DMS Seals mechanical seal face material selection is the heating element. The heating element is finely developed by the professional technicians who aim to make it dehydrate the food by adopting heat source and air flow principle. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. With highly unlikely electricity price falling down in the future, it is recommended for people to choose this energy-efficient product. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. Our mechanical seal face material selection has many usages and is widely used in . We have developed solutions of the sealing of special working condition

1. Installation Recommendation

2. Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

dN h9

D1 H9

L1+0.2

27.3

30.7

29.3

3.2

4.2

3.2

GSJ20*27.3*3.2

GSJ20*30.7*4.2

GSJ22*29.3*3.2

21.89*2.62

23.39*3.53

23.47*2.62

32.7

32.3

35.7

4.2

3.2

4.2

GSJ22*32.7*4.2

GSJ25*32.3*3.2

GSJ25*35.7*4.2

26.57*3.53

26.64*2.62

29.74*3.53

38.7

40.7

42.7

4.2

GSJ28*38.7*4.2

GSJ30*40.7*4.2

GSJ32*42.7*4.2

31.34*3.53

34.52*3.53

36.09*3.53

45.7

46.7

53.1

4.2

6.3

GSJ35*45.7*4.2

GSJ36*46.7*4.2

GSJ38*53.1*6.3

37.69*3.53

40.87*3.53

43.82*5.33

50.7

55.1

57.1

4.2

6.3

GSJ40*50.7*4.2

GSJ40*55.1*6.3

GSJ42*57.1*6.3

44.04*3.53

43.82*5.33

46.99*5.33

55.7

60.1

60.7

4.2

6.3

4.2

GSJ45*55.7*4.2

GSJ45*60.1*6.3

GSJ50*60.7*4.2

47.22*3.53

50.17*5.33

53.57*3.53

65.1

70.1

66.7

6.3

4.2

GSJ50*65.1*6.3

GSJ55*70.1*6.3

GSJ56*66.7*4.2

56.52*5.33

59.69*5.33

59.92*3.53

71.1

76.5

75.1

6.3

8.1

6.3

GSJ56*71.1*6.3

GSJ56*76.5*8.1

GSJ60*75.1*6.3

59.69*5.33

62.87*6.99

66.04*5.33
