DMS Seals Custom propeller shaft seals marine company for automotive equipment
1. propeller shaft seals marine shows excellent characteristics of materials.
2. materials has improved the physical properties of propeller shaft seals marine .
3. propeller shaft seals marine is characterized by delicate design, logic structure and good performance.
4. is one of the most prominent style of propeller shaft seals marine from Dms Seals Technology Co.,limited.
5. After many times of iterations, sole weight of propeller shaft seals marine 'body frame is effectively decreased.
6. The product features high filtration efficiency. The sand separators have been used for the removal of silt, sand, and organic impurities.
7. The product stands out for its dimensional stability. It can maintain the original pleating and don't easily shrink or elongated.
8. The product is not subject to deformation under high temperature. The steel material used in it contains a high content of chromium and nickel which have excellent creeping strength, hence, it is heat-resisting.
9. The product has great softness. Its fabric is chemically treated by changing the fiber and the surface performance to achieve the soft effect.
10. The product is recyclable. Depending on the quality, treated residues can be used as filling materials which maintain original properties.
11. Dms Seals Technology Co.,limited has been successfully operated for more than 10 years in the global market.
12. This product has fetched high demands in the market.
13. To be more advanced in global market, DMS Seals always guarantees the quality of propeller shaft seals marine before loading.
Installation Recommendation
Installation Sizes
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radial Clearance S max. | Radius | O-Ring Cross-Section | ||
Standard Range | Available range | d1 h9 | L1+0.2 | 32MPa | 50MPa | R1 | d2 |
| 8-39.9 | 8-135.0 | DN-4.9 | 2.2 | 0.15 | 0.10 | 0.40 | 1.78 |
| 40-79.9 | 14-250.0 | DN-7.5 | 3.2 | 0.20 | 0.15 | 0.60 | 2.62 |
| 80-132.9 | 22-460.0 | DN-11.0 | 4.2 | 0.25 | 0.20 | 1.00 | 3.53 |
| 133-329.9 | 40-675.0 | DN-15.5 | 6.3 | 0.30 | 0.25 | 1.30 | 5.33 |
| 330-669.9 | 133-690.0 | DN-21.0 | 8.1 | 0.30 | 0.25 | 1.80 | 7.00 |
| 670-999.9 | 670-999.9 | DN-28.0 | 9.5 | 0.45 | 0.30 | 2.50 | 8.40 |
Application and properties

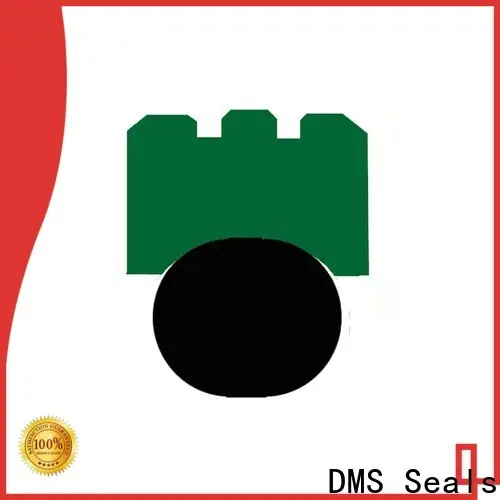

Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the double acting effect, used in construction machinery, construction machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-30MPa | -30℃+200℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H9 | d1 h9 | L+0.2 | |
8 10 12 | 3.1 5.1 7.1 | 2.2 2.2 2.2 | GNS8*3.1*2.2 GNS10*5.1*2.2 GNS12*7.1*2.2 |
14 15 16 | 9.1 10.1 11.1 | 2.2 2.2 2.2 | GNS14*9.1*2.2 GNS15*10.1*2.2 GNS16*11.1*2.2 |
17 18 20 | 12.1 13.1 15.1 | 2.2 2.2 2.2 | GNS17*12.1*2.2 GNS18*13.1*2.2 GNS20*15.1*2.2 |
80 85 90 | 69 74 79 | 4.2 4.2 4.2 | GNS80*69*4.2 GNS85*74*4.2 GNS90*79*4.2 |
95 100 102 | 84 89 91 | 4.2 4.2 4.2 | GNS95*84*4.2 GNS100*89*4.2 GNS102*91*4.2 |
105 110 115 | 94 99 104 | 4.2 4.2 4.2 | GNS105*94*4.2 GNS110*99*4.2 GNS115*104*4.2 |
120 125 130 | 109 114 119 | 4.2 4.2 4.2 | GNS120*109*4.2 GNS125*114*4.2 GNS130*119*4.2 |
210 220 230 | 194.5 204.5 214.5 | 6.3 6.3 6.3 | GNS210*194.5*6.3 GNS220*204.5*6.3 GNS230*214.5*6.3 |
240 250 280 | 224.5 234.5 264.5 | 6.3 6.3 6.3 | GNS240*224.5*6.3 GNS250*234.5*6.3 GNS280*264.5*6.3 |
350 360 400 | 329 339 379 | 8.1 8.1 8.1 | GNS350*329*8.1 GNS360*339*8.1 GNS400*379*8.1 |
