DMS Seals Custom seals for air cylinders for business for pressure work and sliding high speed occasions

Company Advantages
1. In DMS Seals manufacturing, we use mechanical joining and connection technology. We also use injection molding with fully and partially automated processes, as well as manual processes. We have developed solutions of the sealing of special working condition
2. The product helps people maximize the room of usable kitchen space no matter their kitchen is small or large. DMS Seals implements and optimizes its quality control systems
3. The product is not subject to electromagnetic interference. Its coated insulation materials are carefully designed to stave off the magnetization. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. The product provides the desired friction. It has been tested by setting it on a flat surface to eliminate any sign of slides. DMS Seals provides professional design and production of high-grade o-ring seals

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

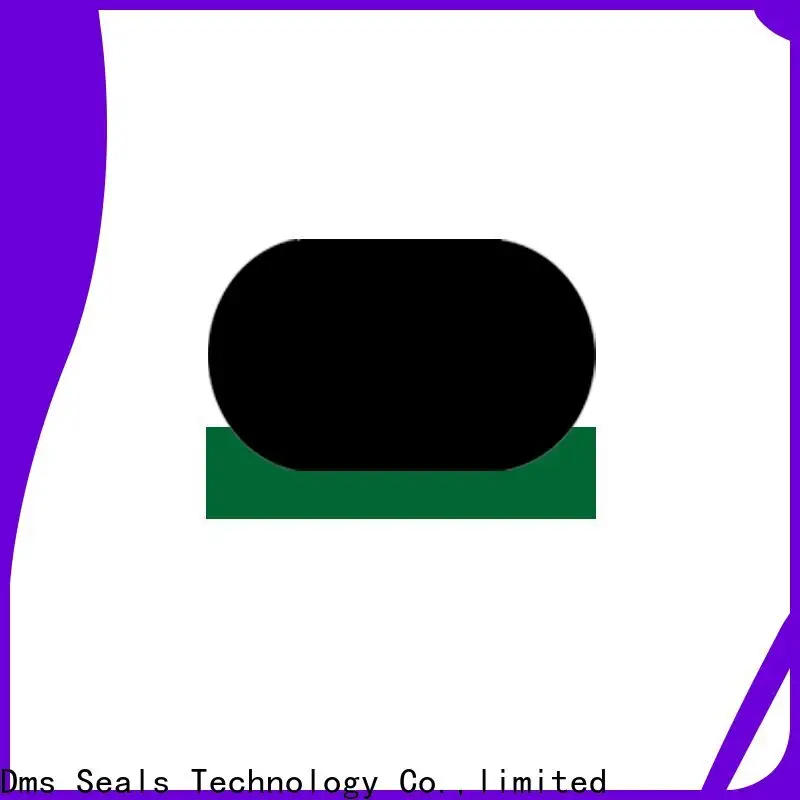

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited stands out from the fierce competition of manufacturing seals for air cylinders . We develop rapidly in recent years. Our company has expert teams. They have the expertise to always make the right decision, retain control, manage risk and guarantee customers consistently high quality products.
2. We have hired incredible talents who are efficient and creative. They embrace the long-term vision and always being prepared for any eventualities. This enables them to always act flexibly to any changes in clients' needs and requirements.
3. Our company consists of management members with proven track records from the industry. Together they bring a wealth of complementary experience, knowledge, and skills to promote our business. We are an environmentally responsible company. From the coming of the raw materials, the manufacturing process, to the final product inspection stages, we consume as little as resources and energy as possible. Inquire online!
