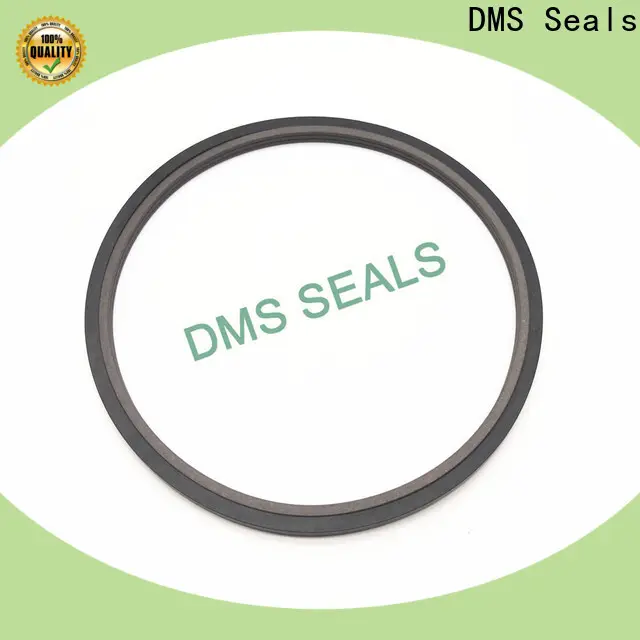

DMS Seals Custom shaft wiper seal cost to high and low speed

Company Advantages
1. Materials used for shaft wiper seal is periodically renovate to make it own best properties. We have developed solutions of the sealing of special working condition
2. Dms Seals Technology Co.,limited has established complete quality control system and to ensure quality of shaft wiper seal . DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. The product is harmless to the skin. The dyes are treated to contain no harmful chemicals and the fabric does not contain any skin irritants. DMS Seals provides professional design and production of high-grade o-ring seals

1. Standard material

Sealing body: filled with polytetrafluoroethylene F-PTFE

Elastomer: Nitrile NBR or Viton FKM

2. Scope of application

This seal has the same performance as SPNO. Since SPN is a square elastic body, it can provide a uniform expansion elastic force for the sealing ring, and can be well used in the situation of wide pressure working range and high sliding speed.

When designing and selecting, please refer to NOK's SPN series standards.



3. Features and Benefits

1. The groove is simple and can be used for integral piston.

2. Small friction, no crawling phenomenon.

3. The static sealing performance is very good. Ensure high wear resistance.

4. Due to the large extrusion gap, it can also be used safely in dirty media.

5. Square elastomer can ensure high durability.

6. Suitable for the latest environment-friendly and safe hydraulic fluid (bio-oil).

Groove Sizes			L +0.2	Order No.
d	D	H
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	MDI18*27*4.3 MDI20*29*4.3 MDI22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	MDI27*36*4.3 MDI31.5*40.5*4.3 MDI47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	MDI53*66*7.3 MDI60*73*7.3 MDI65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	MDI70*83*7.3 MDI75*88*7.3 MDI80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	MDI90*103.4*7.3 MDI100*113.4*7.3 MDI110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	MDI120*133.4*7.3 MDI130*143.4*7.3 MDI140*153.4*7.3

Company Features
1. Dms Seals Technology Co.,limited is one of the large companies in the industry of shaft wiper seal , which has outstanding and competitive advantages.
2. pneumatic seal kit is of longer service life.
3. Dms Seals Technology Co.,limited sticks to the concept of putting the customers first. Get an offer!
