DMS Seals cylinder oil seal company for light and medium hydraulic systems 1

DMS Seals cylinder oil seal company for light and medium hydraulic systems 2

DMS Seals cylinder oil seal company for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

Hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Details

In the production, Dms Seals believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Dms Seals pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee O-ring Seal to be quality-reliable and price-favorable.

Application Scope

Dms Seals's O-ring Seal can be used in multiple industries and fields.Dms Seals is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.

Company Advantages
1. DMS Seals is developed by our internal R&D team that always keeps up with the trend of the lighting industry. They have made great efforts to invent the different bulb materials that emit pure and effective light.
2. The fabrics used in DMS Seals comply with global organic textile standards. They are certified by Oeko-Tex.
3. DMS Seals is carefully designed by considering many factors. For example, part tolerances, size limitations, materials performance, and operational efficiency factors have been taken into considerations.
4. The product is featured by strong durability and long-lasting performance.
5. cylinder oil seal has excellent quality and feature.
6. The strict quality control process is carried out throughout the whole production eliminates the possible defects of the product.
7. Dms Seals Technology Co.,limited has complete quality inspection and quality assurance system.
8. Honesty, professionalism and quality are Dms Seals Technology Co.,limited's constant pursuit.
9. Strict quality assurance is under the control in DMS Seals to ensure the quality.
10. Our all cylinder oil seal are produced under the strict quality assurance.
11. Every procedure of production for cylinder oil seal is well inspected in case of quality problem.

1.Installation Recommendation

undefined

2.Application and properties

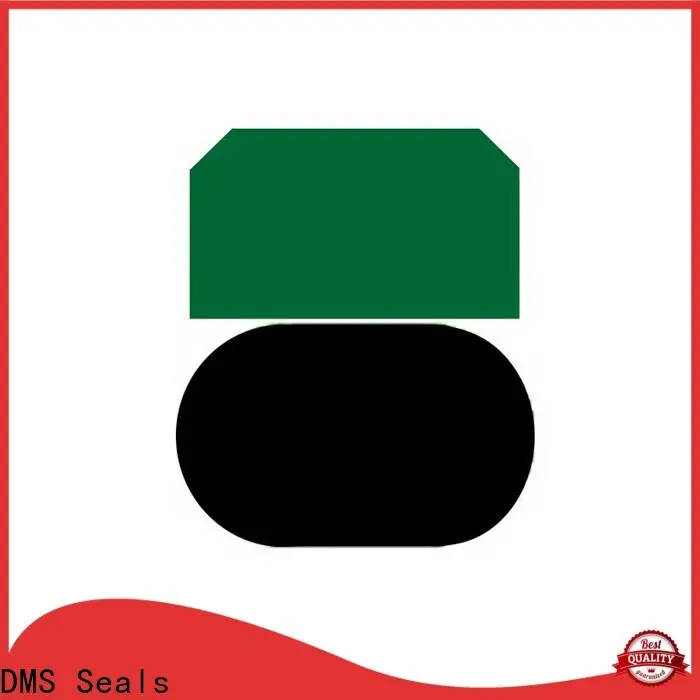

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Installation Dimensions

Company Features
1. In the past years, Dms Seals Technology Co.,limited has remained focus on the design and production of . We have grown into a powerful company. After years of efforts, Dms Seals Technology Co.,limited has defeated most competitors and taken the dominated position when it comes to developing and manufacturing . Dms Seals Technology Co.,limited is an international-oriented manufacturer. Our strong developing and manufacturing strengths of cylinder oil seal have helped us win market recognization.
2. So far, we take pride in that we have covered our sales network around the world. We have enhanced and optimized our marketing channels to more efficiently provide more products to our customers. We have a dense network of satisfied customers globally. These customers complete our global presence by making our products tap into markets such as Canada, Germany, and Italy. With the spirit of building friendship, mutual benefit and enterprising cooperation with customers, We have won the trust and esteem of our customers. The factory is located near the main road and highways. This convenient transportation has brought us more opportunities and competitive advantages in both domestic and foreign markets.
3. DMS Seals promises to improve piston washer through innovation, diligent research and development. Call! DMS Seals's aim is to offer the best customer service for customers. Call! DMS Seals aims to advance in exporting hydraulic cylinder seal compression tool . Call!

DMS Seals cylinder oil seal company for light and medium hydraulic systems

cylinder oil seal

Type:

DMS Seals cylinder oil seal company for light and medium hydraulic systems 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
