DMS Seals cylinder oil seal Supply for light and medium hydraulic systems 1

DMS Seals cylinder oil seal Supply for light and medium hydraulic systems 2

DMS Seals cylinder oil seal Supply for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Application Scope

Dms Seals's O-ring Seal is available in a wide range of applications.Dms Seals has been engaged in the production of O-ring Seal for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Product Details

Adhering to the concept of 'details and quality make achievement', Dms Seals works hard on the following details to make the Oil Seal Manufacturer more advantageous.Under the guidance of market, Dms Seals constantly strives for innovation. Oil Seal Manufacturer has reliable quality, stable performance, good design, and great practicality.

Company Advantages
1. DMS Seals is developed with high safety level. It has passed a series of tests including electrical test, insulation test, noise emission measurements, and other risk analysis.
2. DMS Seals cylinder oil seal is designed based on extensive research, testing and knowledge to create the optimal balance of waterproofing, tear strength and weight.
3. DMS Seals is quality tested in our accredited labs. A variety of mattress testing is carried out on flammability, firmness retention & surface deformation, durability, impact resistance, density, etc.
4. Our QC team follows international quality standards to check the product quality.
5. The product provides excellent safety and quality which have been approved by the international certifications.
6. The product quality has been strictly guaranteed throughout the whole production.
7. Strict testing on product performance is carried out to ensure the consistent and long-lasting performance.
8. cylinder oil seal has a high performance and .
9. Customer interactions in Dms Seals Technology Co.,limited are more personal, professional and effective.
10. Dms Seals Technology Co.,limited is committed to serving customers with sales and after-sales service network.
11. Dms Seals Technology Co.,limited promotes the systematic improvement of its competitiveness.
12. Dms Seals Technology Co.,limited has a strong sense of responsibility and professionalism.
13. The strong support of our own scientific research strength makes our cylinder oil seal more competitive in quality.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

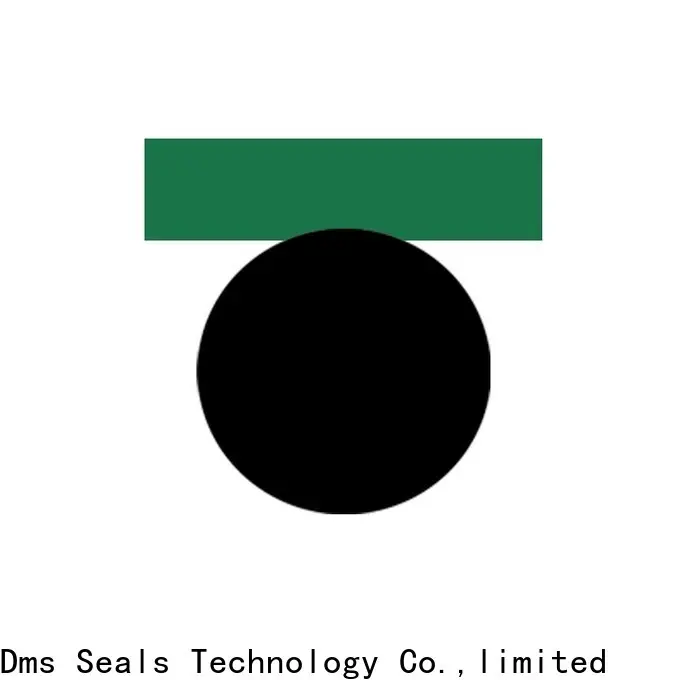

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. DMS Seals specializes in design and production of cylinder oil seal . Since establishment, Dms Seals Technology Co.,limited has been interpreting high-quality wholesale hydraulic seals and services to the world. DMS Seals is now a competitive business in supplying one-stop alternative about hydraulic gasket sealant for customers.
2. This company has established a strong client base. By gaining deep insight into buyers' purchasing tendency, we have upgraded our products to better cater to clients. This helps us grow stronger to win more customers. We have established a wide range of solid customer base. Our customer base spans over decades throughout Africa, the Middle East, the USA, and parts of Asia. The professional QC staffs are the strong guarantee of product quality for customers. Because they always monitor every process of production very closely until delivery.
3. Each of us DMS Seals people is responsible for your success! Call! Dms Seals Technology Co.,limited strictly takes needs of every customer into consideration of buffer seal hydraulic production. Call! Dms Seals Technology Co.,limited aims to become one of the most influential high-end brand of hydraulic and pneumatic seals . Call! DMS Seals upholds the idea that enterprise culture plays an important role in the growth of a company. Call!

DMS Seals cylinder oil seal Supply for light and medium hydraulic systems

cylinder oil seal

Type:

DMS Seals cylinder oil seal Supply for light and medium hydraulic systems 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
