Company Advantages
1. Being distinctly superior in , our products gain more and more popularity.
2. cylinder rod seal adopt materials, generate features such as .
3. Many colors of cylinder rod seal are available for customer's selection.
4. 's service life is improved than common cylinder rod seal .
5. Our cylinder rod seal are also of besides their .
6. The product is quality-assured as it has passed the international certifications, such as the ISO certificate.
7. Strict quality inspection is carried out on different quality parameters in the whole production process to ensure that the products are completely free from defects and have good performance.
8. Our excellent R&D team has greatly improved the quality and performance of our products.
9. Dms Seals Technology Co.,limited has the responsibility to ensure delivering the level and quality of customer service that it promises.
10. Dms Seals Technology Co.,limited has established professional R&D Center of cylinder rod seal production.
11. Such thing as quality problem will never happen in Dms Seals Technology Co.,limited.
12. Dms Seals Technology Co.,limited has the most economical and reasonable price for cylinder rod seal .

Scope of application

DAQ2 piston seal retains the low friction, high pressure resistance and high speed characteristics of PTFE seals, and has the sealing characteristics of rubber, which is suitable for some occasions with high speed and high pressure and need to maintain pressure.

It can be used as a two-way motion piston accumulator and a sealing element for position control cylinders, clamping cylinders, etc., and can be used in machine tools, presses, rolling mills, shoe machines, piston accumulators, heavy suspension cylinders, etc. Especially recommended for heavy duty and large diameter applications.

 Features and Benefits

1. Good dynamic and static sealing performance;

2. With the function of maintaining pressure, the leakage in the cylinder is small;

3. Good sliding performance, no crawling;

4. Hydraulic fluid (bio-oil) suitable for new environmental protection and safety;

5. Since a wide variety of materials can be used, it has strong adaptability to working conditions;

6. It combines low friction and high elasticity, with double safety;

7. The groove design is simple and the installation space is small. The groove size conforms to ISO 7425/1, and can be interchanged with Glynn, Sterling, etc.;

8. Larger extrusion gap can be allowed, depending on the application, so the processing cost can be reduced;

9. Where two media need to be separated (eg: fluid/fluid or fluid/gas), the gas permeability is low and the sealing efficiency is high.

Item	Specifications

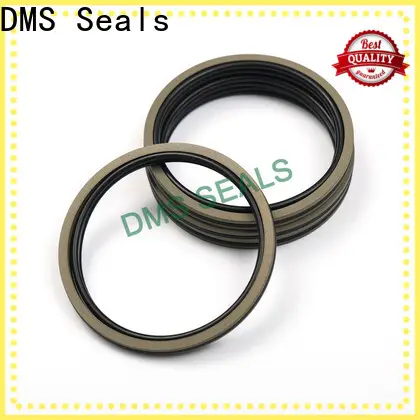

Product Name	Daq2 Star Type Double O-Ring Combined Seal Aqf Piston Accumulator Seal
Products Category	Hydraulic seals, Oil seals, O-Rings
Material	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Propeties	High temperature, low temperature, high pressure, low pressure,friction resistance
Sizes	Standard and customize
Medium	Hydraulic oil,  anti-fire fluid, water, gas etc
Application	excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.

NO.	SIZE	NO.	SIZE
1	DAQ2-40*30*6.3	25	DAQ2-140*122*12.3
2	DAQ2-42*32*6.3	26	DAQ2-150*132*12.3
3	DAQ2-45*35*6.3	27	DAQ2-160*142*12.3
4	DAQ2-48*38*6.3	28	DAQ2-170*152*12.3
5	DAQ2-50*40*6.3	29	DAQ2-180*162*12.3
6	DAQ2-52*42*6.3	30	DAQ2-190*172*12.3
7	DAQ2-55*45*6.3	31	DAQ2-200*182*12.3
8	DAQ2-60*50*6.3	32	DAQ2-210*192*12.3
9	DAQ2-63*53*6.3	33	DAQ2-220*202*12.3
10	DAQ2-65*55*6.3	34	DAQ2-230*212*12.3
11	DAQ2-70*60*6.3	35	DAQ2-240*222*12.3
12	DAQ2-75*65*6.3	36	DAQ2-250*232*12.3
13	DAQ2-80*67*8.3	37	DAQ2-280*262*12.3
14	DAQ2-85*72*8.3	38	DAQ2-300*282*12.3
15	DAQ2-90*77*8.3	39	DAQ2-320*302*12.3
16	DAQ2-95*82*8.3	40	DAQ2-350*332*12.3
17	DAQ2-100*87*8.3	41	DAQ2-400*382*12.3
18	DAQ2-105*92*8.3	42	DAQ2-420*402*12.3
19	DAQ2-110*97*8.3	43	DAQ2-450*432*12.3
20	DAQ2-115*102*8.3	44	DAQ2-480*449*16.3
21	DAQ2-120*107*8.3	45	DAQ2-500*469*16.3
22	DAQ2-125*112*8.3	46	DAQ2-600*569*16.3
23	DAQ2-130*117*8.3	47	DAQ2-700*669*16.3
24	DAQ2-135*117*12.3	48

Company Features
1. In order to keep a leading of profession position, Dms Seals Technology Co.,limited will continuously outstrip ourselves. Dms Seals Technology Co.,limited has its own advantage to produce cylinder rod seal with high quality. The DMS Seals brand is a very popular manufacturer. Dms Seals Technology Co.,limited is well-known for its greatest hydraulic oil seal manufacturers with competitive price. DMS Seals brand is famous in the field of hydraulic cylinder seals and wipers .
2. With a strong technological innovation capability, Dms Seals Technology Co.,limited has obtained several national patents. Equipped with fantastic technical power, DMS Seals becomes more influential than before. Dms Seals Technology Co.,limited is able to supply customers with state-of-art piston t seal product by its fortified R&D team.
3. Dms Seals Technology Co.,limited thinks in new ways to provide solutions that improve customers’ business. Get info! DMS Seals always sticks to the customer first principle. Get info! Dms Seals Technology Co.,limited will keeps improving its competitiveness in piston seal manufacturers market. Get info!

DMS Seals cylinder rod seal price for sale
