DMS Seals DMS Seals cylinder oil seal manufacturer for sale
-
v s
1. DMS Seals cylinder oil seal is made of high-quality materials selected from reliable and internationally-certified suppliers.
2. Professional design: the design of DMS Seals is finished by a team of professionals. They are fully equipped with the industry know-how and design the product by utilizing the most professional knowledge.
3. DMS Seals cylinder oil seal is designed in accordance with the basic production standard.
4. The product has good moisture permeability. It is mainly made of a fabric that absorbs moisture and absorbs sweat.
5. The product generates little noise. It is developed and manufactured based on the noise standards for the industrial equipment.
6. The product has the advantage of high precision. It is specially processed under the lathes which are designed for cutting the metal in the most precise way.
7. With the product's breathable fabric, which is a lot more like sportswear, the user will feel comfortable for the whole night.
8. The product is highly responsive. Thanks to its advanced control system, it can respond in a short time without any delay.
9. The product we provide is highly recognized in the global market.
10. The product will be served more and more customers for its high consistency in the industry.
11. Being widely recognized by more customers, it turns out to be applicable in the industry.
12. The product is deeply remembered mainly because of its outstanding features.
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |

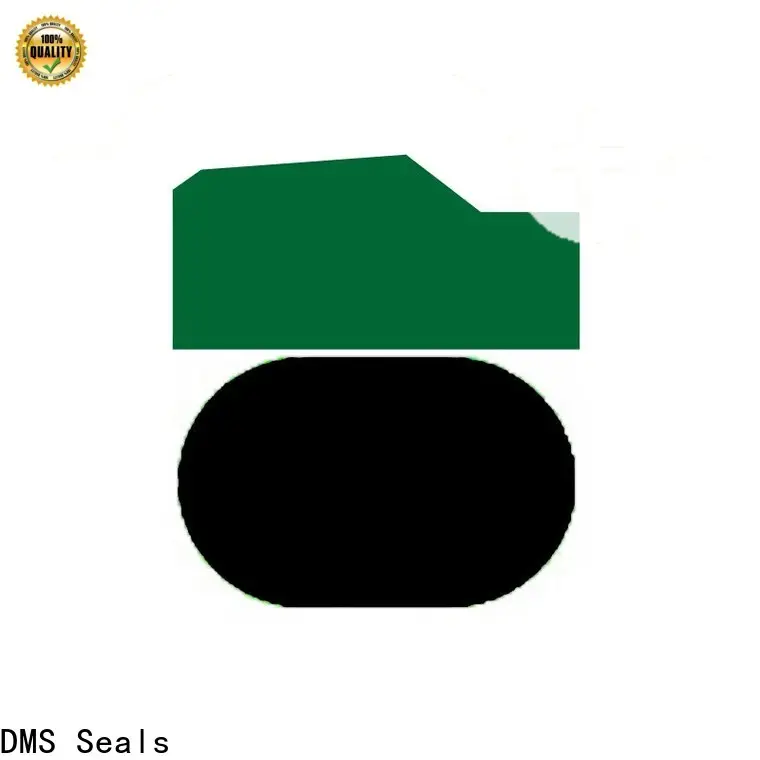

Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. As one of the manufacturer and suppliers in China, Dms Seals Technology Co.,limited has developed into a strong enterprise. Dms Seals Technology Co.,limited has been prestigious in R&D and production of quality cylinder oil seal . We are a manufacturer with years of good reputation. Dms Seals Technology Co.,limited is one of the most qualified suppliers of hydraulic oil seal manufacturers to the industry. We have gained years of experience in production. Dms Seals Technology Co.,limited is a leading manufacturer of in China. We pride ourselves in gaining a reputation through our extensive experience. As a modernized company, Dms Seals Technology Co.,limited integrates R&D, manufacturing, and sales of . We are known for excellence in manufacturing.
2. We have prioritized many factors in selecting the factory location. Our factory now is seated in a government support zone where several incentives, concessions, and tax holidays are available, which enables us to save many costs in production. At this point, our business has been expanded to many countries around the world, and the main markets include America, Russia, Japan, and some Asia countries. Our manufacturing teams are an essential part of our company. They are constantly looking for ways to improve our processes and create a safer, more efficient and cost-effective manufacturing environment. We have invested in a series of advanced manufacturing facilities. These machines are equipped with the latest production technologies, which can ensure that we can manufacture our products at the highest level.
3. Under the guidance of vision, DMS Seals will uphold consistently rubber piston seal . Ask! Constant innovation is indispensable for long-term development of Dms Seals Technology Co.,limited. Ask! Dms Seals Technology Co.,limited will consistently provide high quality double acting seal . Ask!
