DMS Seals DMS Seals industrial roller bearings cost for sale

Company Advantages
1. It is useful for DMS Seals to begin to focus on the design of industrial roller bearings .
2. industrial roller bearings plays an important role which makes our products widely used in different occasions.
3. The design of makes DMS Seals more comprehensive in the industrial roller bearings manufacturing industry.
4. DMS Seals is manufactured with 5S standard production process.
5. Professionalism would be industrial roller bearings 's advantage.
6. The product perfectly combines the compact structure and functionality. It has both artistic beauties and actual utilizing value.
7. The product is anti-bacterial. Its surface, made of antimicrobial materials, is not likely to become a breeding ground for viruses, bacteria, and mold.
8. This product is less likely to become dirty. Its surface is not easily affected by chemical stains, tainted water, fungi, and mold.
9. This product has the required hand-feel. Its fabrics feature enough softness, stiffness, bending rigidity, smoothness, and compressibility.
10. It contains few or no chemicals and substances whose use are restricted or banned. Chemical content testing has been performed to evaluate the presence of heavy metals, flame retardants, phthalates, biocidal agents, etc.
11. Dms Seals Technology Co.,limited makes efforts to comprehensively enhance the operational efficiency and quality.
12. Dms Seals Technology Co.,limited has years of production experience for industrial roller bearings .
13. Dms Seals Technology Co.,limited has years of R&D and production experience for industrial roller bearings .

1. Installation Recommendation

2. Application and properties

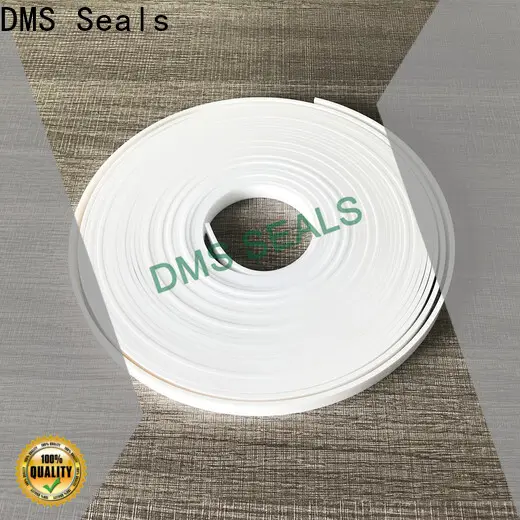

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

White virgin PTFE

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
