DMS Seals DMS Seals piston cup seal suppliers vendor for light and medium hydraulic systems 1

DMS Seals DMS Seals piston cup seal suppliers vendor for light and medium hydraulic systems 2

DMS Seals DMS Seals piston cup seal suppliers vendor for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. As an important part of the final inspection, the label of DMS Seals is validated by our quality control team to ensure compliance with international bedding requirements. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. This product shares branding. It is a simple and creative way to advertise, promote and call the consumer to action. To reduce costs with high-efficiency work is the DMS's purpose
3. Its comprehensive cost is much lower than that of common piston cup seal suppliers . DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
4. The additional functions of DMS Seals product deliver more economic benefits to customers. DMS Seals takes the lead in grasping the development trend of the industry

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

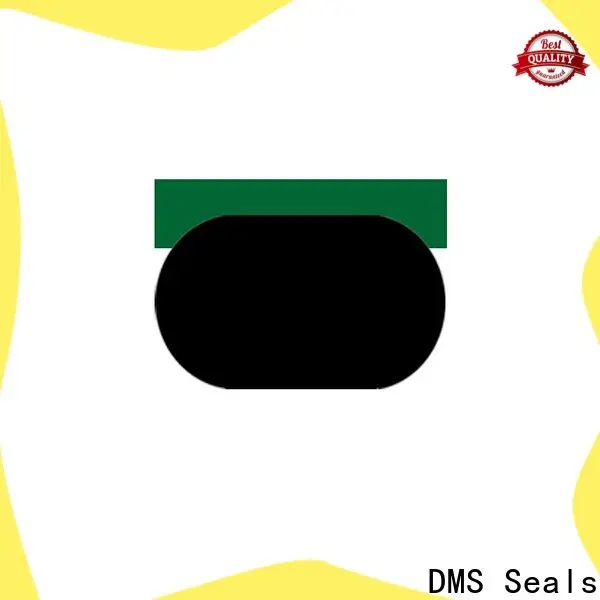

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions
