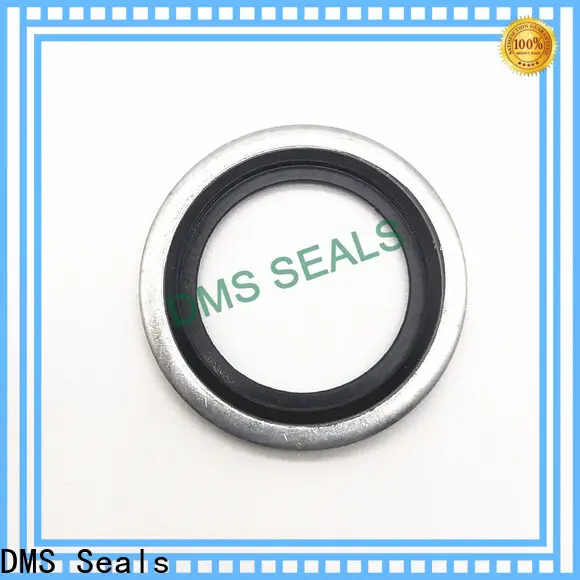

DMS Seals dowty seal kit price for threaded pipe fittings and plug sealing

Company Advantages
1. Dms Seals Technology Co.,limited can satisfy different design requirements.
2. 's service life is improved than common dowty seal kit .
3. Our design for dowty seal kit is more human-centered than other company.
4. dowty seal kit take precedence over other similar products with its design.
5. With the advantages of good material and smooth outline,dowty seal kit ocuppy the main market.
6. The product features extreme simplicity. With a rigorous structural design, it can be quickly assembled or disassembled.
7. This product features excellent fire resistance. The material itself is a kind of fire-retardant material which can withstand the high temperature.
8. Containing no Bisphenol A (BPA) ingredient, the product is safe and harmless to people. Food such as meats, vegetable, and fruits can be placed in it and dehydrated for a healthy diet.
9. The product has great chemical resistance. It can protect against chemical attack or solvent reaction. It has resistivity to corrosive environments.
10. People who bought this product won't feel like pain and discomfort after walking miles. It provides maximum comfort.
11. The product provides enough fun for children and adults, and it adds extra excitement to any events or celebrations.
12. The product is simple to use. It allows the operator to move throughout the working area quickly, accurately and safely.

1. Applicability of the Bonded Seal Washer

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Best quality bonded seal wholesale, welcome to contact the leading bonded seal rings and bonded washers suppliers.

Company Features
1. As a well-established company, Dms Seals Technology Co.,limited mainly specializes in dowty seal kit . Dms Seals Technology Co.,limited is an export-oriented entity integrating R&D, production, processing and export. Dms Seals Technology Co.,limited is known as a backbone enterprise in the field of dowty o ring sizes . DMS Seals is a credible enterprise that focuses on manufacturing m8 dowty washer .
2. Our plant has gathered a well-trained and qualified workforce. They provide extensive experience to ensure high-quality standards in the whole manufacturing process. We have a dedicated management team. Based on their years of unique management experience, they can improve our manufacturing processes to constantly meet customers' needs. Our company has attracted national attention. We have received multiple awards, such as Outstanding Supplier of the Year and Business Excellence Award. These honors affirm our dedication. Our manufacturing plant is equipped with the latest technologies. This not only helps us in reducing production times but also in improving the quality of the finished products. We have state-of-the-art manufacturing facilities. They part into several highly operational units, helping the company in managing operations and production in the most effective manner.
3. Supported by our professional staff, DMS Seals has enough confidence to produce 6mm dowty washer . Please contact us! DMS Seals's service team will respond to you in a timely, efficient and responsible manner. Please contact us! 'Quality first and user foremost is the objective of DMS Seals. Please contact us! Dms Seals Technology Co.,limited commits to build win-win relationship with our customer. Please contact us!
