DMS Seals dura seal mechanical seal manufacturer

Company Advantages
1. The production of DMS Seals dura seal mechanical seal adopts lean production model.
2. Our professional inspectors and workers ensure the whole production process of DMS Seals proceed well.
3. The raw materials of DMS Seals are paid great attention during the incoming material inspections.
4. It has good strength. It has a proper size which is determined by the forces/torques applied and the materials used so that failure (fracture or deformation) would not occur.
5. The product is eco-friendly. Its materials can be recycled after years of use. Even when not recycled, the materials do not cause any damage to the environment.
6. This product can support foot movement stably. Its ergonomic structure can effectively withstand the stress from the feet by locking the shoe around the heel.
7. In addition, Dms Seals Technology Co.,limited is capable of manufacturing dura seal mechanical seal , which are.
8. Dms Seals Technology Co.,limited will do our utmost to provide relative certificates about our dura seal mechanical seal if necessary.
9. Quality always comes first when it comes to dura seal mechanical seal .

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

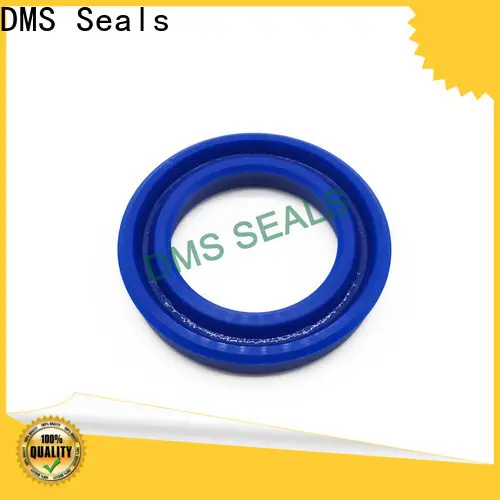

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Dms Seals Technology Co.,limited has been concentrated on the production of dura seal mechanical seal . Over the years, we've been fortunate to earn reputation from customers around the world. Advanced technology has helped us capture the domestic and foreign markets. Dms Seals Technology Co.,limited is an enterprise full of experience and innovation. We are well-known for our strong competence in manufacturing . Dms Seals Technology Co.,limited aims to supply high quality with outstanding personalized design and competitive cost. We plan to be one of the leading company in this field in the coming years.
2. Our company has passed the quality control system to ensure the high grade of durametallic seal . technology is not only good for improvement of quality but also quantity for oil seal manufacturers . Our window seal suppliers are available in various colors and shapes for more convenience.
3. We are putting our efforts to protect resources and ecosystems. For example, we aim to reduce CO2 emissions by constantly improving the quality of discharge. Innovation is our future. Through continuous technological advancement, we overcome the challenges of tomorrow: with a pioneering, specialized approach and a focus on development. Central to the company's philosophy is the practice of working as closely with our business partners and end-users as possible, listening to their needs, thoughts, and wishes and understanding their markets and requirements.
