DMS Seals high speed high speed shaft seal factory for automotive equipment

Company Advantages
1. The design of the structure makes high speed shaft seal very easy to operate. The high pressure seals have strong wear resistance to hard conditions
2. Available in different specifications, the product is highly demanded among customers owing to its high economic return. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. The product features great lightfastness. It has UV protection, which prevents it from changing color caused by the action of light. DMS Seals implements and optimizes its quality control systems
4. The biggest advantage of this product is energy saving. It can make self-adjustment in accordance with the different pressure needed during production to reduce energy consumption. DMS Seals provides professional design and production of high-grade o-ring seals

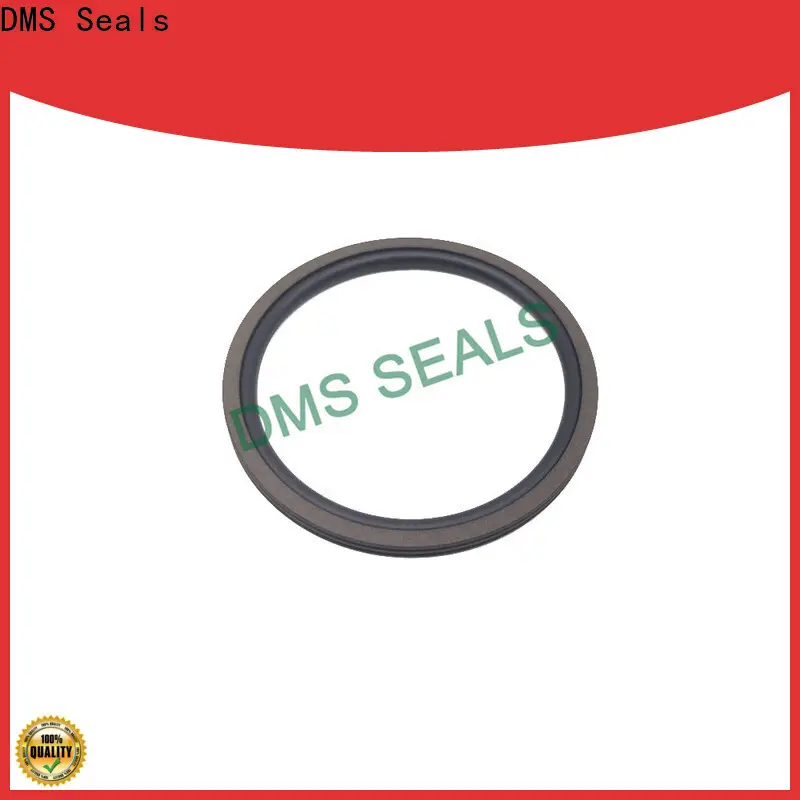

GNS is composed of a filled PTFE wear ring and an O-ring rubber seal. O-rings provide radial preload to compensate for wear on the wear rings. It has a two-way sealing effect and can withstand pressure in one or two directions. Suitable for hole sealing of shafts, rods, bearings, rotary joints, swivel seats, etc.

Advantages: 1.Available for internal or external sealing 2.High corrosion resistance and dimensional stability 3.Small frictional resistance, quick start, no crawling phenomenon, to ensure the stability of movement 4.less wear 5.Simple groove design, small groove size

NO.	SIZE	NO.	SIZE
1	GNS20*15.1*2.2	33	GNS125*114*4.2
2	GNS22*17.1*2.2	34	GNS130*119*4.2
3	GNS25*20.1*2.2	35	GNS135*119.5*6.3
4	GNS28*23.1*2.2	36	GNS140*124.5*6.3
5	GNS30*25.1*2.2	37	GNS150*134.5*6.3
6	GNS32*27.1*2.2	38	GNS160*144.5*6.3
7	GNS35*30.1*2.2	39	GNS170*154.5*6.3
8	GNS36*31.1*2.2	40	GNS175*159.5*6.3
9	GNS38*33.1*2.2	41	GNS180*164.5*6.3
10	GNS40*32.5*3.2	42	GNS190*174.5*6.3
11	GNS42*34.5*3.2	43	GNS200*184.5*6.3
12	GNS45*37.5*3.2	44	GNS210*194.5*6.3
13	GNS48*40.5*3.2	45	GNS220*204.5*6.3
14	GNS50*42.5*3.2	46	GNS230*214.5*6.3
15	GNS52*44.5*3.2	47	GNS240*224.5*6.3
16	GNS53*45.5*3.2	48	GNS250*234.5*6.3
17	GNS55*47.5*3.2	49	GNS280*264.5*6.3
18	GNS60*52.5*3.2	50	GNS300*284.5*6.3
19	GNS63*55.5*3.2	51	GNS310*294.5*6.3
20	GNS65*57.5*3.2	52	GNS320*304.5*6.3
21	GNS70*62.5*3.2	53	GNS350*329*8.1
22	GNS75*67.5*3.2	54	GNS360*339*8.1
23	GNS80*69*4.2	55	GNS400*379*8.1
24	GNS85*74*4.2	56	GNS420*399*8.1
25	GNS90*79*4.2	57	GNS450*429*8.1
26	GNS95*84*4.2	58	GNS480*459*8.1
27	GNS100*89*4.2	59	GNS500*479*8.1
28	GNS102*91*4.2	60	GNS510*489*8.1
29	GNS105*94*4.2	61	GNS520*499*8.1
30	GNS110*99*4.2	62	GNS550*529*8.1
31	GNS115*104*4.2	63	GNS600*579*8.1
32	GNS120*109*4.2	64	GNS650*629*8.1

Company Features
1. The DMS Seals brand has always attracted many markets and customers.
2. We have continued to make a significant investment in production facilities. This allows us to manufacture products smoothly from concept to completion whilst also ensuring that we can serve the needs of our customers.
3. Our mission is to exceed customer expectations. We strive for excellence in providing high value, distinctive, and competitive products for clients.
