DMS Seals hyd seal manufacturer for pressure work and sliding high speed occasions

Company Advantages
1. hyd seal exceed other similar products with its materials.
2. We can customize shapes for our hyd seal .
3. Connotations and principles about the design of hyd seal are based on .
4. hyd seal outrival other similar products due to its design.
5. This product is corrosion resistant. It has been tested in salt fog harsh environment to determine its resistance to the effects of a salt atmosphere.
6. It has good deodorizing features. Chemicals that can inhibit the growth of odor-generating bacteria are applied to its textile materials to reduce unpleasant odors on the clothing.
7. This product features a robust and firm structure. All its components and even the hardware accessories are securely and tightly fastened.
8. Dms Seals Technology Co.,limited's entire employee received systematic training.
9. hyd seal are highly recommended by our customers for its greatest quality.
10. With a wide range of applications in the market, this product is extensively accepted by customers.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

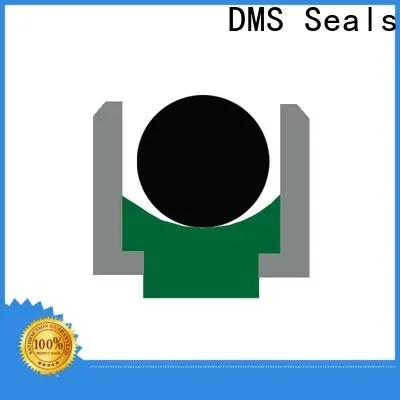

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. As an influential enterprise, DMS Seals plays an important role in the hyd seal field. DMS Seals now is a reliable metric hydraulic cylinder seals supplier in this field. Dms Seals Technology Co.,limited is a professional and experienced company in hydraulic sealing solutions field. As a trustworthy company, DMS Seals has always been developing its high technology introduction and staff training. DMS Seals is a dominant supplier integrating design, research and development, production, sales and service of oil seal hydraulic .
2. Our advanced machine is able to fabricate such piston seal manufacturers with features of [拓展关键词/特点]. All our technician in Dms Seals Technology Co.,limited are well trained to help customers solve problems for hydraulic cylinder seal kits . Always aim high in quality of piston rod seals hydraulic . We have the capability of researching and developing state-of-the-art technologies of metric wiper seals . The standard nature of these processes permits us to fabricate .
3. DMS Seals wants to make our earth rod seal sell to all over the world. Call! DMS Seals will do its utmost to serve the customers with the highest quality of viton rubber seal . Call! Dms Seals Technology Co.,limited continually focuses on the innovation and improvement for air piston seal . Call! By following the professional service process, DMS Seals always provide the best service for customers. Call! DMS Seals has been constantly upgrading the quality of service for customers. Call!
