DMS Seals hydraulic cylinder piston seal leakage for sale

Company Advantages
1. Each DMS Seals is produced by our design department. They spend time exploring, testing and assessing a variety of materials and processes that fit the scope of this bedding work.
2. DMS Seals is meticulously constructed by our engineers. The extensive experience in the manufacture and installation of steel structures of these people effectively avoid mistakes in project implementation.
3. DMS Seals has ensured quality. Strict inspections are carried out after the production to eliminate any potential quality problems.
4. DMS Seals hydraulic cylinder piston seal leakage has been evaluated in many aspects. The evaluation includes its structures for safety, stability, strength, and durability, surfaces for resistance to abrasion, impacts, scrapes, scratches, heat, and chemicals, and ergonomic assessments.
5. The design of DMS Seals reflects professionalism. It is designed takes into consideration that mechanical function, energy efficiency, and material efficiency.
6. One of the most outstanding features of this product is its durability. With a non-porous surface, it is able to block out humidity, insects, or stains.
7. The bacteria are not easy to build upon its surface. Its materials have been specially treated to have long-term antibacterial properties that reduce the chance of bacterial growth.
8. The product is non-toxic. Containing no irritant harmful substances, such as formaldehyde that have pungent odors, it will not cause toxication.
9. This product has a durable surface. The materials and surface treatment endow its surface with abrasion, impact, scrape and scratch resistance.
10. Dms Seals Technology Co.,limited consists of a the leading technical team from hydraulic cylinder piston seal leakage trade.
11. Dms Seals Technology Co.,limited has high demand on outer packing for hydraulic cylinder piston seal leakage .
12. Service is the main soft power for Dms Seals Technology Co.,limited.
13. We not only provide stable quality of hydraulic cylinder piston seal leakage , but also have an ideology of globalization.
14. DMS Seals has acquired the certifications of hydraulic cylinder piston seal leakage , and provides one-stop solution with quality inspection.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

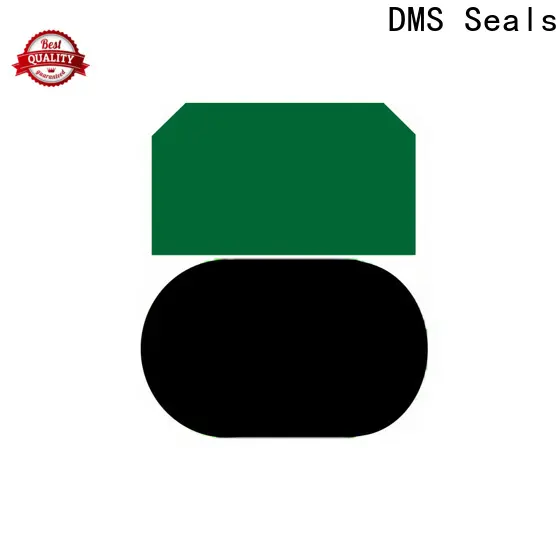

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a global leader in hydraulic cylinder piston seal leakage industry. DMS Seals is a famous exporter in the field of cheap oil seals . DMS Seals is a dependable firm which is famous because of its double acting seal . Dms Seals Technology Co.,limited is a lively and enthusiastic manufacturer centered on piston cup seal suppliers . Dms Seals Technology Co.,limited delivers high quality and cost effective hyd seal with exceptional customer support.
2. Dms Seals Technology Co.,limited gets the certificate of ISO9001 quality management system. Dms Seals Technology Co.,limited invests much in technology innovation to reach the world's advanced level. Dms Seals Technology Co.,limited has advanced production equipment, excellent manufacturing technology and complete testing methods. DMS Seals has been also specialized in researching and developing hydraulic oil seal manufacturers with exquisite quality.
3. With our concept of sustainability, we are carrying on the style which includes the obligation to conduct environmentally compatible, clean and fair business with long-term success. We strive for sustainable development. We are encouraging each and every employee to change their ways of thinking by organizing social challenge workshops to brainstorm the creation of new businesses and new products that are driven by the need to solve social issues. Our vision is to expand our global business. We will strive hard to achieve this goal by improving our product quality and introducing talents. Inquiry!
