DMS Seals hydraulic motor seal kit factory for pressure work and sliding high speed occasions

Company Advantages
1. The main body of hydraulic motor seal kit is made by advanced .
2. Many of hydraulic motor seal kit come from world-class designers.
3. Our hydraulic motor seal kit enjoys special features including .
4. All shapes and all sizes of hydraulic motor seal kit can be selected by you.
5. Dms Seals Technology Co.,limited is more technically advanced in manufacturing hydraulic motor seal kit .
6. With the performance of and , hydraulic motor seal kit is a product which can represent excellence of DMS Seals.
7. The incomparable quality is the characteristic of every product we make.
8. While sustaining , hydraulic motor seal kit can also represent the spirit of DMS Seals.
9. People will find it very soft and comfortable to wear with its excellent softness and smoothness. It is very friendly to people's skin.
10. This product can be worn for a long time. Even after being washed and dried multiple times, it still remains strong and does not fade.
11. This product will be extremely suitable for people who are suffering from foot problems, providing people the right amount of cushion and support.
12. The product is very much in line with the modern pursuit of a comfortable, convenient, efficient, and high-quality way of life.
13. If there's one thing that's certain about wearing this garment, it's that it makes the wearer feel better.

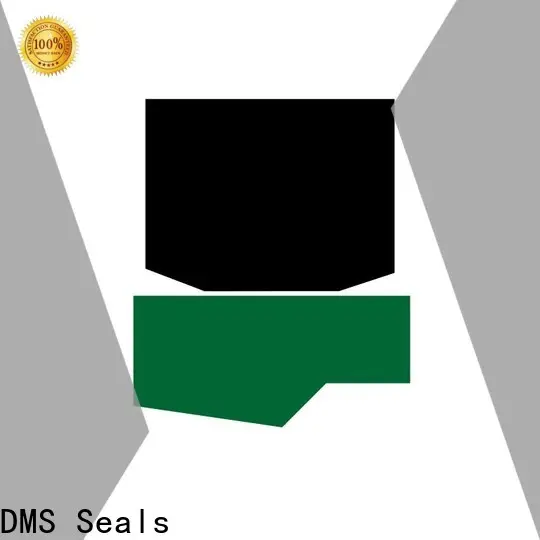

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5

Company Features
1. Dms Seals Technology Co.,limited is a production company with many years of experience in the Chinese and foreign markets. We focus on the development and manufacturing of hydraulic motor seal kit . Dms Seals Technology Co.,limited is a trusted Chinese manufacturer of . We have extensive industry experience and knowledge that sets us apart from our competitors. Relying on the rich experience in R&D and manufacturing , Dms Seals Technology Co.,limited has become one of the essential market players. Winning the market's appreciation in the R&D and manufacture sectors, Dms Seals Technology Co.,limited has been engaging in the production of for years. Established years ago, Dms Seals Technology Co.,limited is a China-based company skilled in designing and manufacturing. We are remembered for our exquisite work.
2. piston seal hydraulic is assembled by our highly skilled professionals. Whenever there is any problems for our hydraulic packing kits , you can feel free to ask our professional technician for help. Our professional equipment allows us to fabricate such . Every piece of pneumatic cylinder rod seal has to go through material checking, double QC checking and etc. At present, most of the metric hydraulic cylinder seals series produced by us are original products in China.
3. Dms Seals Technology Co.,limited is dedicated to spreading the reputation of its own brand. Ask! DMS Seals has been constantly growing the service quality to enhance the satisfaction of foreign and domestic clients. In order to win the market, DMS Seals has been doing the utmost to serve customers with the most professional attitude. Ask! Due to the encouragement from clients, DMS Seals brand will continue to develop higher customer satisfaction. Ask! Dms Seals Technology Co.,limited is well prepared to face all the challenges on the road of development. Ask!
