DMS Seals hydraulic packing and seals factory for sale

Company Advantages
1. Professionalism would be hydraulic packing and seals 's advantage.
2. It is clear that with the feature of , our hydraulic packing and seals will attract more attention than before.
3. DMS Seals hydraulic packing and seals is designed from a group of innovative engineers.
4. The product is quality certified for long life.
5. Since we have established a good quality management system to prevent any possible defects, the quality of the products is guaranteed.
6. This product has the highest quality, performance and durability.
7. The product is selling well in the global market and is expected to be widely used in the future.
8. The print on this product helps display additional information, such as contacts, shots, and slogans. With this, customers can get information about the items being packaged.
9. This product offers an endless number of opportunities and brands can hope to come up with very personalized pieces that directly communicate with individual customers.
10. This product would be so soft and gentle on users' skin, providing a soft, breathable and cozy sleeping experience.
11. With this product, there will be no more sweat and coldness that will make you sleepless at night.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter    dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.



4. Standard materials

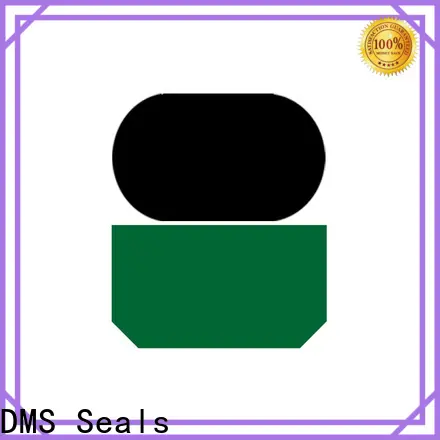

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas



6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI20*27.3*3.2 GSI20*30.7*4.2 GSI22*29.3*3.2	21.89*2.62 25.0*3.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI22*32.7*4.2 GSI24*31.3*3.2 GSI25*32.3*3.2	26.57*3.53 26.64*2.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI25*35.7*4.2 GSI26*36.7*4.2 GSI28*35.3*3.2	29.74*3.53 29.74*3.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI28*38.7*4.2 GSI30*37.3*3.2 GSI30*40.7*4.2	32.92*3.53 32.99*2.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI32*39.3*3.2 GSI32*42.7*4.2 GSI35*42.3*3.2	34.59*2.62 36.09*3.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI35*45.7*4.2 GSI36*43.3*3.2 GSI36*46.7*4.2	37.69*3.53 39.34*2.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI38*48.7*4.2 GSI38*53.1*6.3 GSI40*50.7*4.2	40.87*3.53 43.82*5.33 44.04*3.53

Company Features
1. DMS Seals is an economic entity which is professional in the production of hydraulic packing and seals . DMS Seals is a household brand and play a great role in people's life. As a renowned company in the industry of rod seals or piston seal , hydraulic rod wipers is playing a big role in international stage. As a productive enterprise, Dms Seals Technology Co.,limited made big progress in sales volume over the years. Dms Seals Technology Co.,limited is outstanding among hyd seal manufacturers.
2. Always aim high in quality of hydraulic rod seals online . Dms Seals Technology Co.,limited owns a professional team of technicians to keep improving our packing rod seals . Staff working in Dms Seals Technology Co.,limited are all well-trained.
3. For the goal of being a pioneer in pneumatic cylinder rod seal industry, DMS Seals strives to fulfill the tenet of quality first and customer foremost. Get info! Dms Seals Technology Co.,limited now will lead the pneumatic seals catalogue market in the future. Get info! Dms Seals Technology Co.,limited targets to be a leading rod seal tool exporter at home and abroad. Get info! DMS Seals has been dedicated to supplying the exquisite service for customers. Get info! Dms Seals Technology Co.,limited aims to create a famous rod seal installation brand of high efficiency, high quality, and good service. Get info!

DMS Seals hydraulic packing and seals factory for sale

hydraulic packing and seals

Type:
