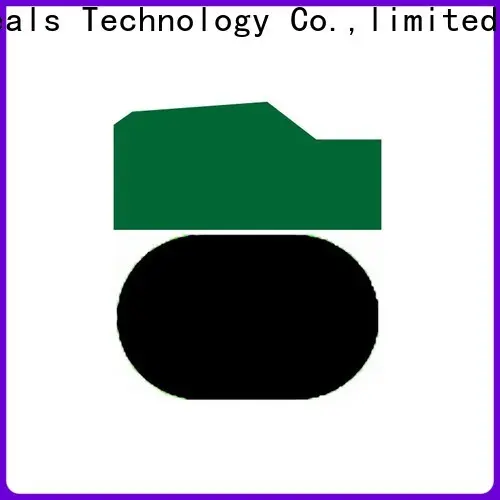

DMS Seals hydraulic piston seal installation for business for pneumatic equipment 1

DMS Seals hydraulic piston seal installation for business for pneumatic equipment 2

DMS Seals hydraulic piston seal installation for business for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Humanized design for hydraulic piston seal installation is favored by our customers. The high pressure seals have strong wear resistance to hard conditions
2. The product has become an essential ingredient in maintaining and improving people's quality of life and maximizing the use of food products. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. The product has a good pool cleaning effect. It's designed with a highly dense structure which prevents any small particles to get through. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

Installation Recommendation

undefined

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-16.9	17-26.9	--	DN-4.9	2.2	0.4	0.30	0.20	0.15	1.78
17-26.9	27-59.9	--	DN-7.3	3.2	0.6	0.40	0.25	0.15	2.62
27-59.9	60-199.9	17-26.9	DN-10.7	4.2	1.0	0.50	0.30	0.20	3.53
60-199.9	200-255.9	27-59.9	DN-15.1	6.3	1.3	0.70	0.40	0.25	5.33
200-255.9	256-669.9	60-199.9	DN-20.5	8.1	1.8	0.80	0.60	0.35	7.00
256-669.9	670-999.9	200-669.9	DN-24.0	8.1	1.8	0.90	0.70	0.40	7.00
670-999.9	--	256-669.9	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	1000-2000	--	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	--	670-999.9	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00
1000-2700	--	--	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00

Application and properties

Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Width	Order No.	O-ring Dimension
D H9	d1 h9	L1+0.2	Order No.	O-ring Dimension
9 10 12	4.1 5.1 7.1	2.2 2.2 2.2	GSD94.12.2 GSD105.12.2 GSD127.12.2	3.681.78 4.801.8 6.70*1.8
15 18 20	10.1 10.7 15.1	2.2 3.2 2.2	GSD1510.12.2 GSD1810.73.2 GSD2015.12.2	9.251.78 9.192.62 14.0*1.78
20 22 25	12.7 14.7 17.7	3.2 3.2 3.2	GSD2012.73.2 GSD2214.73.2 GSD2517.73.2	12.372.62 13.942.62 17.12*2.62
27 28 30	16.3 17.3 19.3	4.2 4.2 4.2	GSD2716.34.2 GSD2817.34.2 GSD3019.34.2	15.473.53 16.43.53 18.66*3.53
32 32 35	24.7 21.3 24.3	3.2 4.2 4.2	GSD3224.73.2 GSD3221.34.2 GSD3524.34.2	23.472.62 20.223.53 23.40*3.53
36 38 40	25.3 27.3 32.7	4.2 4.2 3.2	GSD3625.34.2 GSD3827.34.2 GSD4032.73.2	243.53 263.53 31.42*2.62
40 45 48	29.9 34.3 37.3	4.2 4.2 4.2	GSD4029.34.2 GSD4534.34.2 GSD4837.34.2	28.173.53 32.923.53 36.09*3.53
50 50 52	39.3 34.9 41.3	4.2 6.3 4.2	GSD5039.34.2 GSD5034.96.3 GSD5241.34.2	37.703.53 32.695.33 40.87*3.53
55 60 63	44.3 44.9 52.3	4.2 6.3 4.2	GSD5544.34.2 GSD6044.96.3 GSD6352.34.2	44.043.53 43.825.33 50.39*3.53
63 64 65	47.9 48.9 49.9	6.3 6.3 6.3	GSD6347.96.3 GSD6448.96.3 GSD6549.96.3	46.995.33 46.995.33 46.99*5.33
70 70 75	59.3 54.9 59.9	4.2 6.3 6.3	GSD7059.34.2 GSD7054.96.3 GSD7559.96.3	56.743.53 53.345.33 56.52*5.33
80 80 85	64.9 59.5 69.9	6.3 8.1 6.3	GSD8064.96.3 GSD8059.58.1 GSD8569.96.3	62.875.33 587.0 69.22*5.33
90 90 95	74.9 69.5 79.9	6.3 8.1 6.3	GSD9074.96.3 GSD9069.58.1 GSD9579.96.3	72.395.33 687.0 78.74*5.33
95 100 100	74.5 84.9 79.5	8.1 6.3 8.1	GSD9574.58.1 GSD10084.96.3 GSD10079.58.1	737.0 81.925.33 78*7.0
110 120 125	94.9 104.9 104.5	6.3 6.3 6.3	GSD11094.96.3 GSD120104.96.3 GSD125109.96.3	91.445.33 104.145.33 107.32*5.33
