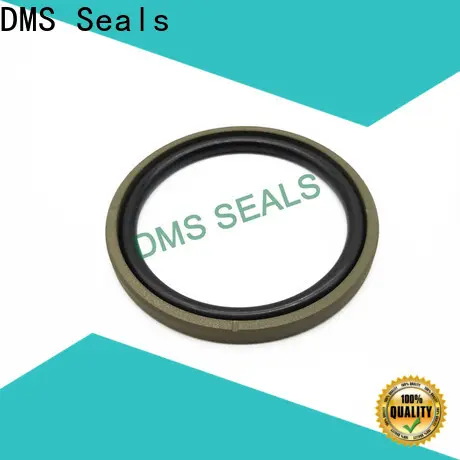

DMS Seals hydraulic rod seal installer factory for light and medium hydraulic systems

Company Advantages
1. By using advanced technology in the production, DMS Seals has a delicate surface finish.
2. hydraulic rod seal installer is developing toward functional, practical, and decorative types.
3. hydraulic rod seal installer 's structure is more compact and easy to be installed, so as to effectively reduce labor intensity and shorten operating time.
4. DMS Seals hydraulic rod seal installer is manufactured using quality proven materials.
5. Each product meets the quality standards through strict quality test.
6. Our professionals have worked delicately to ensure the product is excellent in performance, functionality, etc.
7. The improved quality management system guarantees the higher quality of this product.
8. Dms Seals Technology Co.,limited is always willing to provide customers with quality services.
9. Dms Seals Technology Co.,limited uses modern management tools to continuously innovate, improve product quality and technology.
10. Dms Seals Technology Co.,limited is dedicated to provide our customers with the best hydraulic rod seal installer throughout the country.
11. Having set foot in hydraulic rod seal installer industry, DMS Seals began to focus on the service provided and quality of products.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is an expert in the development, production, and marketing of hydraulic rod seal installer . We are commonly accepted by customers in the industry. Accepted in the market and society, Dms Seals Technology Co.,limited has many years of experience in producing leading quality . Dms Seals Technology Co.,limited has decades of experience in manufacturing . We have been focusing on the development, design, and manufacture. Dms Seals Technology Co.,limited is an integrated manufacturer in China. We develop and manufacture and provide sales and support service. Dms Seals Technology Co.,limited is growing quickly based on years of extensive experience and a deep understanding of manufacturing .
2. Dms Seals Technology Co.,limited has successfully got several patents for technology. Our hydraulic cylinder seal compression tool is easily operated and need no additional tools. All our technician in Dms Seals Technology Co.,limited are well trained to help customers solve problems for cylinder rod seal . We adopt world-advanced technology when manufacturing hydraulic piston seal installation .
3. We believe that sustainable manufacturing is efficient manufacturing. The computerized production lines we use cut costs and energy usage by ensuring that power is used only when it is needed. In addition to product requirements, we also strive to build a global logistics and support network to continuously provide the additional services our customers need to make their projects successful. Welcome to visit our factory! We bear social responsibility. We place the highest demands on our activities in our sphere of influence and in all distribution chains. We are committed to sustainable development. In addition to the good feeling we get, our sales actually increase through our good work. Welcome to visit our factory!
