DMS Seals hydraulic seal design wholesale for pressure work and sliding high speed occasions

Company Advantages
1. The quality of DMS Seals is guaranteed by a series of tests. It has gone through inspection on its seam force, tensile strength, fiber stiffness, fiber resilience, etc.
2. The design of DMS Seals is professionally conducted. It includes the concept design (sketch, rendered or 3D modeling concepts ), circuit design, mechanical design, and PCB layout.
3. Advanced computer-aided technologies are applied in DMS Seals hydraulic seal design design. Its phototype is created using CAD and CAM technologies by the designers.
4. The shape is among the most important in fashion design of DMS Seals . The goal of its shape is to compliment the shape of the body.
5. DMS Seals is well crafted. Welding and/or sewing are adopted to achieve seams that develop the full strength of the fabric.
6. It is weather resistant. It is able to retain structural integrity and its appearance over many seasons and through a variety of weather conditions.
7. It has a durable surface. It has finishes that are resistant to attack from chemicals such as bleach, alcohol, acids or alkalis to some extent.
8. The product has good contact performance. All its parts have been professionally welded and soldered with advanced technique.
9. The product has won huge attention and praises from customers in the market.
10. With so many advantages, the product has an extensive range of market application.
11. The product, having gone through a proper testing phase, is excellent in performance.
12. Our product has a wide client base across China and overseas.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

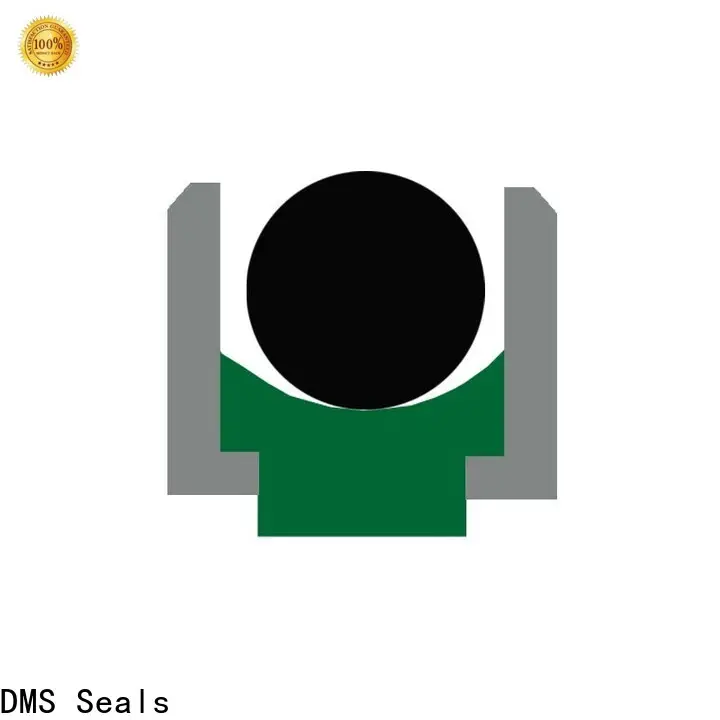

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5
