DMS Seals hydraulic seal kits suppliers for light and medium hydraulic systems 1

DMS Seals hydraulic seal kits suppliers for light and medium hydraulic systems 2

DMS Seals hydraulic seal kits suppliers for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Comparison

O-ring Seal has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.Compared with products in the same category, Dms Seals's O-ring Seal has the following outstanding features.

Company Advantages
1. hydraulic seal kits suppliers is of extremely features of .
2. DMS Seals adopts standard and safe production process.
3. The production of DMS Seals is highly standardized and efficient.
4. DMS Seals hydraulic seal kits suppliers is precisely measured and tested to ensure an extremely precise specification.
5. The raw material of hydraulic seal kits suppliers is environmentally.
6. The product will produce and dissipate heat during operation. Inside with a heat dissipation system, it will not burn out suddenly due to overheating of inner electric components.
7. The product has a thick and strong structure. Its heart board is made of natural log and its surface layer is made of the natural thick veneer. That guarantees the whole stable and robust structure.
8. The product is not easy to deform. Made of hard materials which feature high toughness, it will not out of shape even under high pressure.
9. The product features great stacking flexibility. Its overhead track system – specific aluminum alloy rails to flexibly meet the necessary stacking requirements.
10. Dms Seals Technology Co.,limited has established long-term cooperative relationships with a number of companies.
11. Dms Seals Technology Co.,limited has the advanced product testing method and equipment.
12. Dms Seals Technology Co.,limited now has a strong design group, can research and develop hydraulic seal kits suppliers independently.

Installation Recommendation

undefined

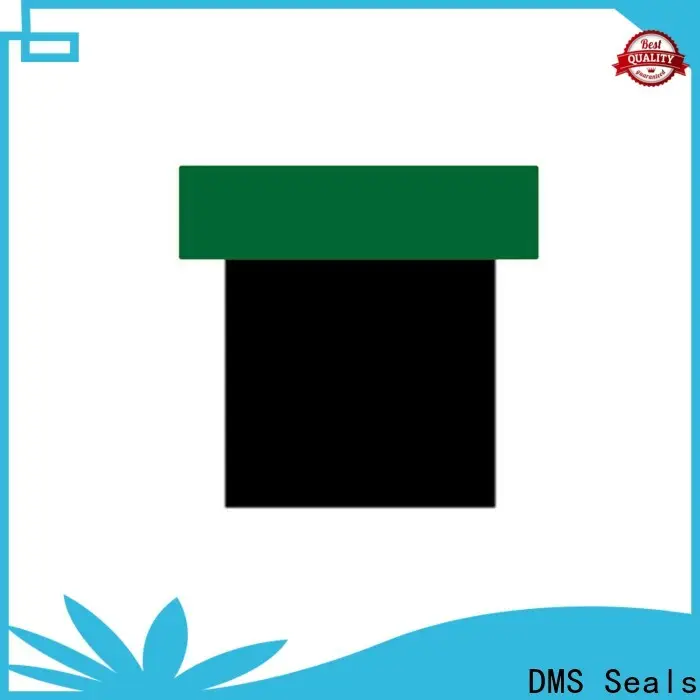

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
30 31.5 32	20.5 22 22.5	4.3 4.3 4.3	4.5 4.5 4.5	SPG3020.54.5 SPG31.5224.5 SPG3222.54.5
35 35.5 40	25.5 26 30	4.3 4.3 4.3	4.5 4.5 4.5	SPG3525.54.5 SPG35.5264.5 SPG40304.5
45 50 55	35 40 45	4.3 4.3 4.3	4.5 4.5 4.5	SPG45354.5 SPG50404.5 SPG55454.5
56 60 63	46 50 48	4.3 4.3 7.3	4.5 4.5 7.5	SPG56464.5 SPG60504.5 SPG63487.5
65 69 70	50 54 55	7.3 7.3 7.3	7.5 7.5 7.5	SPG65507.5 SPG69547.5 SPG70557.5
71 75 80	56 60 65	7.3 7.3 7.3	7.5 7.5 7.5	SPG71567.5 SPG75607.5 SPG80657.5
85 90 95	70 75 80	7.3 7.3 7.3	7.5 7.5 7.5	SPG85707.5 SPG90757.5 SPG95807.5
100 105 108	85 90 92	7.3 7.3 7.3	7.5 7.5 7.5	SPG100857.5 SPG105907.5 SPG108927.5
110 112 120	94 96 104	7.3 7.3 7.3	7.5 7.5 7.5	SPG110947.5 SPG112967.5 SPG1201047.5
125 130 135	109 114 119	7.3 7.3 7.3	7.5 7.5 7.5	SPG1251097.5 SPG1301147.5 SPG1351197.5
140 145 150	124 129 134	7.3 7.3 7.3	7.5 7.5 7.5	SPG1401247.5 SPG1451297.5 SPG1501347.5
155 160 170	139 144 148	7.3 7.3 10.8	7.5 7.5 11	SPG1551397.5 SPG1601447.5 SPG17014811

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited's business in hydraulic seal kits suppliers takes a great part in local economy. Dms Seals Technology Co.,limited is a foreign owned enterprise primarily manufacturing high quality piston seal additive . Now, Dms Seals Technology Co.,limited has occupied a large share of shaft wiper seal market. Dms Seals Technology Co.,limited is the first large manufacturer in China specializing in producing shaft seal design . DMS Seals is responsible for cheap oil seals business, and is the leading provider .
2. With advanced technology applied in hyd cylinder seals , we take the lead in this industry. Our piston seals production equipment possesses many innovative features created and designed by us. Dms Seals Technology Co.,limited has successfully got several patents for technology. Dms Seals Technology Co.,limited owns a professional team of technicians to keep improving our hydraulic oil seal manufacturers . We expect no complaints of o-ring seal from our customers.
3. The vision of DMS Seals is to become a well-known brand in the world. Ask online! To meet market demand, Dms Seals Technology Co.,limited will adhere to this long-term advancement of hydraulic cylinder gaskets . Ask online! Dms Seals Technology Co.,limited is always here to provide the best service for our customers. Ask online! DMS Seals expects to be an expert brand in the worldwide industry. Ask online!

DMS Seals hydraulic seal kits suppliers for light and medium hydraulic systems

hydraulic seal kits suppliers

Type:

DMS Seals hydraulic seal kits suppliers for light and medium hydraulic systems 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
