DMS Seals hydraulic seals catalogue glyd ring

Company Advantages
1. DMS Seals is produced in line with lighting production standards. These standards are up to both domestic and international standards such as GB and IEC. Seal we produced has applications in a wide range of fields
2. Dms Seals Technology Co.,limited creates high-quality and cost-effective hydraulic seals catalogue products. We have developed solutions of the sealing of special working condition
3. The product will never be out of shape. Its heavy-duty components and parts are perfectly designed to withstand extreme industrial conditions. DMS Seals implements and optimizes its quality control systems
4. This product is fading resistant. Its colorfastness performance has been enhanced to resist external factors such as washing, UV and sunlight exposure. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

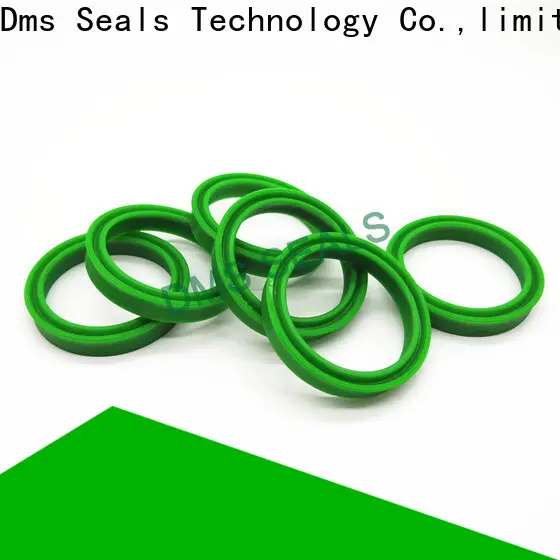

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. The advanced labs are beneficial to the development of finest quality hydraulic seals catalogue .
2. In Dms Seals Technology Co.,limited, efforts will be made to promote the development of the domestic bearing seal manufacturers industry. Call now!
