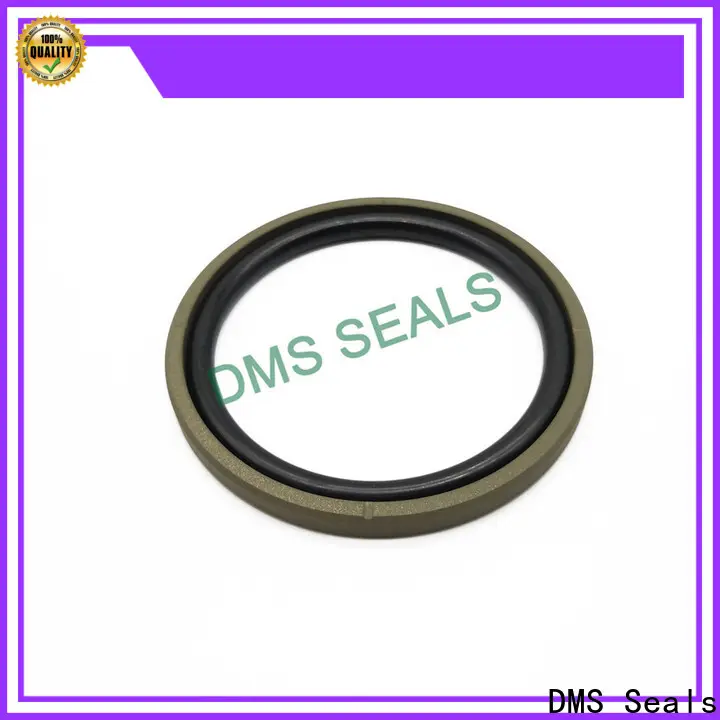

DMS Seals hydraulic seals companies factory for pneumatic equipment

Company Advantages
1. DMS Seals has been analyzed in many aspects, such as operational efficiency, safety, functionality, productivity, components performance, ease of operation and maintenance.
2. DMS Seals has a very scientific design. Humidity, temperature, carbon dioxide and light, as well as other factors such as rain, airflow or noise, are environmental concerns in design.
3. The quality of DMS Seals is ensured. We use textile fibers that are derived from suppliers that provide quality textile for many years.
4. DMS Seals hydraulic seals companies is designed following the concept of striving for first-rate. It brings together the world’s finest materials and craftsmanship.
5. DMS Seals is meticulously constructed by our engineers. The extensive experience in the manufacture and installation of steel structures of these people effectively avoid mistakes in project implementation.
6. This product is super easy to clean. There are no dead corners or many slits which easy to gather residues and dust.
7. The product features easy installation, as it does not require flash mixers, chemical pre-feed equipment, and filter basins.
8. The product features good chemical resistance. It can resist many chemicals such as some acids, oxidizing chemicals, ammonia, and isopropyl alcohol.
9. The product is trusted by customers with its exceptional features.
10. In tune with the track of market development, the product is widely accepted by customers.
11. Its main technical performance has reached the international advanced level.
12. This product has been warmly welcomed with its reasonable prices.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. DMS Seals enjoy the 'cross-country' reputation, and its image is deeply rooted in costumer's heart. When it comes to hydraulic seals companies , Dms Seals Technology Co.,limited is always the first choice for customers. Dms Seals Technology Co.,limited currently has a research and development center and a large-scale production base. Dms Seals Technology Co.,limited adheres to credit management and is a well-known custom oil seals enterprise in China. There is no other companies like Dms Seals Technology Co.,limited to always keep the leader in the market of hydraulic seals & supplies inc .
2. Dms Seals Technology Co.,limited adopts high technology to guarantee high quality of bucket cylinder seal kit . All piston seal manufacturers has passed relative international standards certifications. Dms Seals Technology Co.,limited laid out its bonded piston seal production base all around the country, forming a significant competitive advantage. Dms Seals Technology Co.,limited has a complete system for QC.
3. We hope to be a pioneer in the industry. Check now! The biggest wish of DMS Seals is to become the leading rod seal tool supplier in the near future. Check now! DMS Seals is committed to perceiving, serving and meeting customer needs in the wholesale hydraulic seals market. Check now! Adhere to the spirit of customer first, DMS Seals will be encouraged to ensure service quality. Check now!
