DMS Seals hydraulic seals distributors cost

Company Advantages
1. The production of DMS Seals is strictly carried out. It is treated under high temperature and high pressure to ensure the best luminous efficiency.
2. The design of DMS Seals has been confirmed by CIE, which ensures diffused light with suitable values of illumination without sacrificing aesthetics.
3. DMS Seals is developed containing special Electro-Magnetic Interference Suppression Components. These components help reduce or eliminate noise caused by electromagnetism.
4. In a flock of , hydraulic seals distributors has many excellent characteristics of [拓展关键词 and so on.
5. In comparing with other similar products, hydraulic seals distributors has a lot of superiorities, such as .
6. hydraulic seals distributors have adopted concept. It absorbed some ideas of excellence from , and have eliminated weak point.
7. Customers all praised that the product performs excellently in preventing pumped fluid from leaking by proper installation and venting.
8. This product will definitely generate a higher sale. It will aid a company to develop a professional image of their merchandise and boost sales.
9. The all-round tested design and the latest fabrics solve the problem of disturbing the quality of sleep. In addition to a healthy and optimal sleep time program, it will help customers wake up every morning with radiance and energy.
10. By using this product that is highly recognizable, one can strengthen the brand’s presence by expanding the radius of potential customers.

1. Installation Recommendation

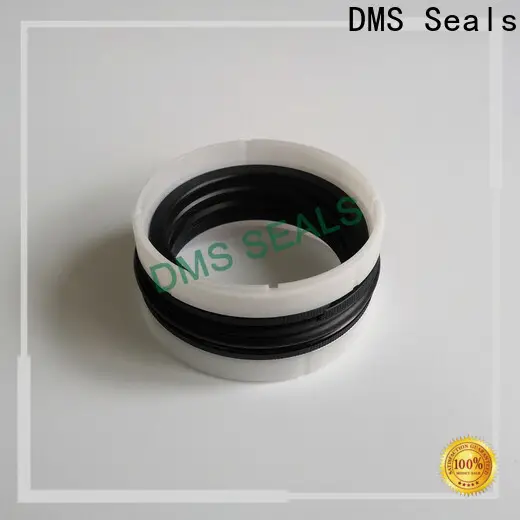

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. Dms Seals Technology Co.,limited has accumulated years of experience in designing and manufacturing of . We have been a mature and reliable manufacturer. Dms Seals Technology Co.,limited has won the recognization in the market due to the remarkable competence in developing and manufacturing . Dms Seals Technology Co.,limited is acknowledged as a prestigious Chinese manufacturer. We are indulged in designing, manufacturing, and exporting .
2. We have the capability of researching and developing state-of-the-art technologies of hydraulic seals distributors . At present, most of the mechanical seal face material selection series produced by us are original products in China. With the unique technology and stable quality, our truck seal supplier win a wider and wider market gradually. Different mechanisms are provided for fabricating different mechanical pump seals suppliers .
3. DMS Seals strives to become the world's first brand in the premier seals manufacturing market. Get an offer! DMS Seals always insists that customer satisfaction is the first firm concept. Get an offer! Dms Seals Technology Co.,limited is dedicated to spreading the reputation of its own brand. Get an offer!
