Installation Recommendation
![undefined undefined]()
Installation Sizes
Bore Diameter | Groove Diameter | Groove Width | Radius | Radial Clearance S max. |
D H8 | d h8 | L1+0.2 | R1 | 16MPa | 26MPa | 32MPa | 40MPa |
55.0-149.9 | D-10.0 | 10.0 | 0.4 | 0.60 | 0.50 | 0.40 | 0.40 |
150.0-244.9 | D-12.5 | 12.5 | 0.4 | 0.75 | 0.65 | 0.55 | 0.50 |
245.0-500.0 | D-15.0 | 15.0 | 0.8 | 0.75 | 0.65 | 0.55 | 0.50 |
500.1-760.0 | D-17.5 | 17.5 | 1.2 | 0.75 | 0.65 | 0.55 | 0.50 |
760.1-999.9 | D-20.0 | 20.0 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
≧1000 | D-20.0 | 20.5 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
Application and properties
Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

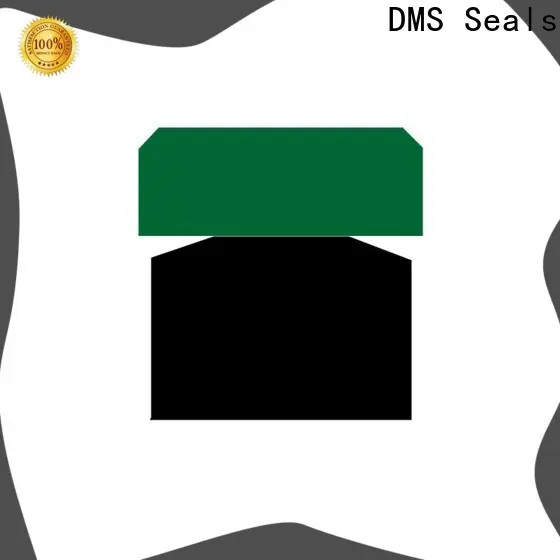

Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H8 | d h8 | L+0.2 |
55
60
70 | 40
45
55 | 10
10
10 | GSF-W55*40*10
GSF-W60*45*10
GSF-W70*55*10 |
80
90
100 | 60
70
80 | 10
10
10 | GSF-W80*60*10
GSF-W90*70*10
GSF-W100*80*10 |
110
115
120 | 90
95
100 | 10
10
10 | GSF-W110*90*10
GSF-W115*95*10
GSF-W120*100*10 |
130
140
150 | 110
120
125 | 10
10
12.5 | GSF-W130*110*10
GSF-W140*120*10
GSF-W150*125*12.5 |
160
165
170 | 135
140
145 | 12.5
12.5
12.5 | GSF-W160*135*12.5
GSF-W165*140*12.5
GSF-W170*145*12.5 |
180
185
190 | 155
160
165 | 12.5
12.5
12.5 | GSF-W180*155*12.5
GSF-W185*160*12.5
GSF-W190*165*12.5 |
200
205
210 | 175
180
185 | 12.5
12.5
12.5 | GSF-W200*175*12.5
GSF-W205*180*12.5
GSF-W210*185*12.5 |
215
220
225 | 190
195
200 | 12.5
12.5
12.5 | GSF-W215*190*12.5
GSF-W220*195*12.5
GSF-W225*200*12.5 |
230
240
245 | 205
215
215 | 12.5
12.5
15 | GSF-W230*205*12.5
GSF-W240*215*12.5
GSF-W245*215*15 |
