DMS Seals hydraulic valve seals factory for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seals will be assessed to guarantee the quality of workmanship. It is checked in terms of the wrinkle-resistant finish of the fabrics, edge finish, iron quality, and fabric flatness.
2. The manufacturing process of DMS Seals covers several aspects. It includes fabric selection, pattern design & making, sampling, sample confirmation, mass production, and quality control.
3. The design of DMS Seals conforms to the basic constitutive elements of geometrical morphology of furniture. It considers the point, line, plane, body, space, and light.
4. is widely used in hydraulic valve seals field, with a promising application prospect and tremendous market potential.
5. hydraulic valve seals has achieve features like , and has met better technical and economic index.
6. hydraulic valve seals is produced using method, which realizes .
7. hydraulic valve seals can be relatively , and provide features like .
8. Compared with other , hydraulic valve seals exhibited features like .
9. People do not have to worry about the problem of microbial diseases. It is very hygienic and safe for people to use.
10. The product saves money by using less energy. It is an economic method for people to enjoy their life or work.
11. The product has reduced the need for less-skilled workers and increased the skill level required for the remaining workers in production.
12. The use of this product is money-saving. Without the need for maintenance, it also contributes a lot in cutting electricity bills.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

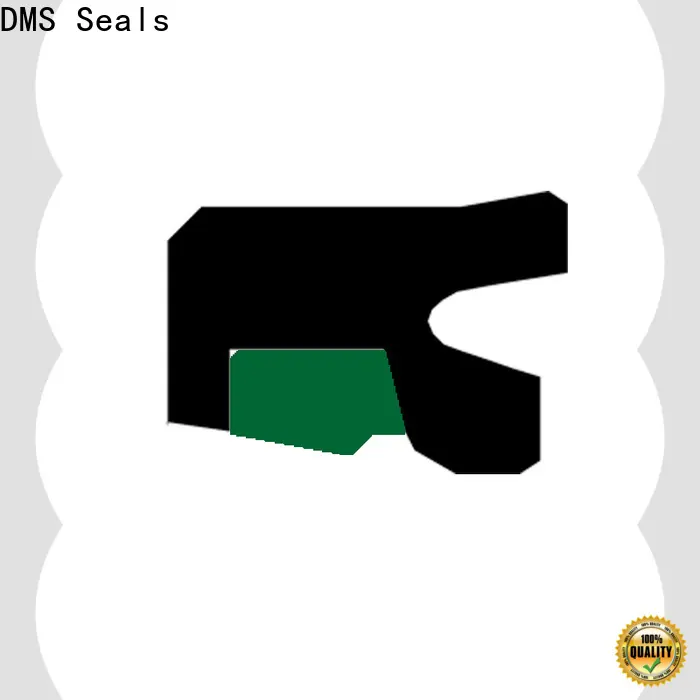

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited is one of the Chinese biggest producers of hydraulic valve seals . With many years of experience in creating hydraulic rod wipers , DMS Seals deeply implement the pursuit of quality of life to meet different needs. Dms Seals Technology Co.,limited has attracted many customers due to its first-class technology, high quality and competitive price.
2. So far, we have been gaining a large market share in America, Europe, Asia, and so on. Currently, we are finding new ways to establish cooperations with customers around the world. Dms Seals Technology Co.,limited has a group of experienced and innovative R&D. We have imported a series of production facilities in our factory. They are highly automated, which allows to create and manufacture virtually any shape or design of a product. We have a team of R&D experts dedicated to constantly developing the product range. They ensure that the products are up to date with the latest technology.
3. Since our inception, we always strive to improve the lives of consumers worldwide by offering them branded products with superior quality and value. Call now! We manage our business by our core values of balance, commitment, customer focus, integrity, and quality. Each member of our team lives by and practices these values every day. We commit ourselves to safety, quality, reliability, and innovations. We will always prioritize these values at the top during the production processes. Call now!
