DMS Seals kit seal cylinder supplier for light and medium hydraulic systems

Company Advantages
1. DMS Seals complies with energy efficiency standards. It is proven to be compatible in the USA, the EU, and China in terms of minimum energy performance standards (MEPS) and class-average standards. Seal we produced has applications in a wide range of fields
2. The product helps create a harmonious family atmosphere and a strong sense of breath of life. People can interact with their families during cooking. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
3. A strict quality management system ensures that the product maintains the desired level of excellence. DMS Seals takes the lead in grasping the development trend of the industry

DDMA is used for in-line seals in a variety of liquid applications and is an internal seal. Mainly used for piston and plunger seals. Can be used in mineral oils, modified oils, flame retardant hydraulic oils and compressed air.

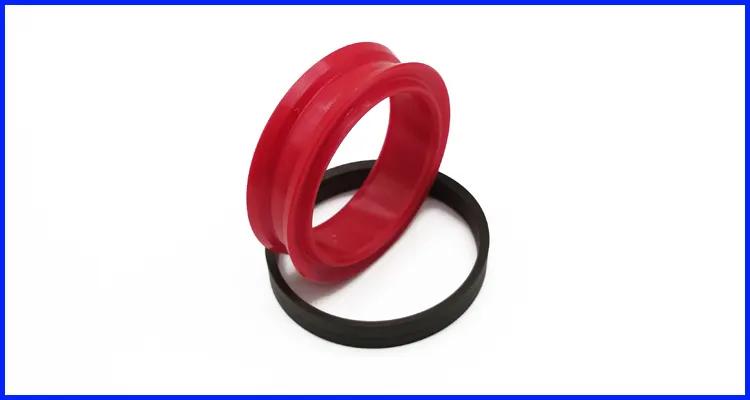

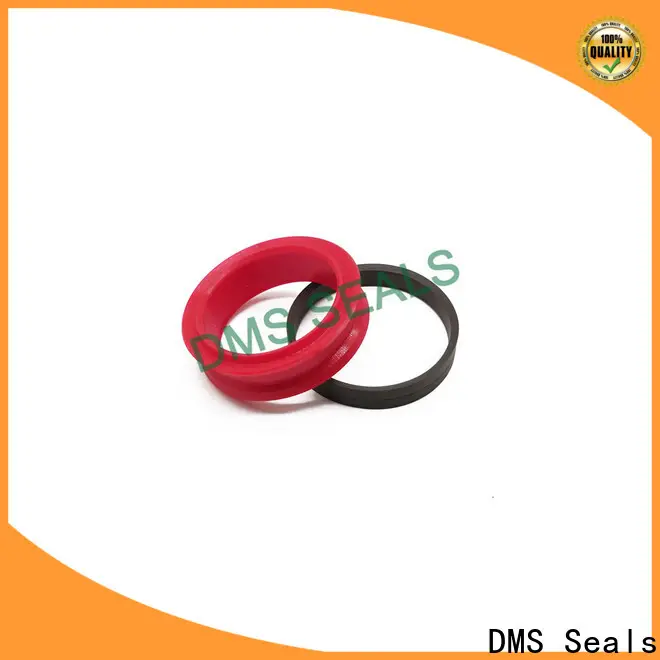

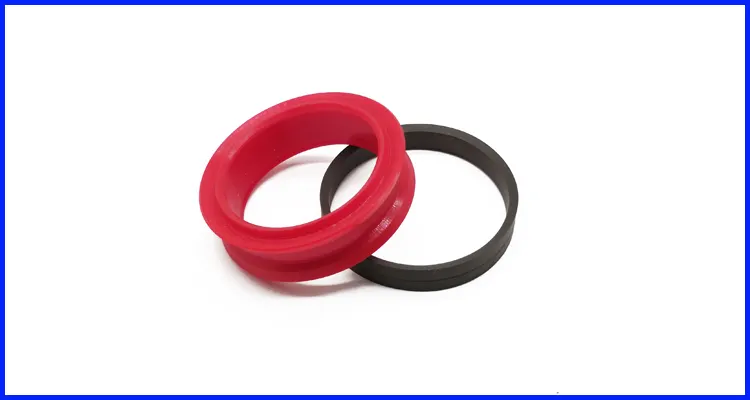

DDMA is sealed by a combination of a double-lip elastomer and a wear ring. Before installation, the sealing lip protrudes outward, and after installation, the cylinder liner is pressed tightly to provide elastic force for the wear ring, which can achieve excellent sealing effect even in the absence of pressure. The liquid on both sides of the separable sealing ring is also suitable for the sealing of the oil chamber to prevent the intrusion of other liquids.

Standard material

Sealing Ring: Filled PTFE

Elastomer: Nitrile NBR or Polyurethane PU

Features

-Easy installation

-High wear resistance

- Low friction, no stick-slip

NO.	SIZE	NO.	SIZE
1	DDMA40*30*16	28	DDMA200*188*16
2	DDMA45*35*16	29	DDMA210*198*16
3	DDMA50*40*16	30	DDMA220*208*16
4	DDMA56*46*16	31	DDMA225*213*16
5	DDMA63*53*16	32	DDMA235*223*16
6	DDMA65*55*16	33	DDMA240*228*16
7	DDMA70*60*16	34	DDMA250*238*16
8	DDMA75*65*16	35	DDMA265*253*16
9	DDMA80*70*16	36	DDMA275*263*16
10	DDMA85*75*16	37	DDMA280*268*16
11	DDMA90*80*16	38	DDMA290*278*16
12	DDMA95*85*16	39	DDMA300*288*16
13	DDMA100*90*16	40	DDMA310*296*16
14	DDMA105*95*16	41	DDMA320*306*16
15	DDMA115*105*16	42	DDMA340*326*16
16	DDMA120*110*16	43	DDMA350*336*16
17	DDMA125*113*16	44	DDMA360*346*16
18	DDMA130*118*16	45	DDMA380*366*16
19	DDMA135*123*16	46	DDMA400*384*16
20	DDMA140*128*16	47	DDMA420*404*16
21	DDMA145*133*16	48	DDMA425*409*16
22	DDMA150*138*16	49	DDMA450*434*16
23	DDMA155*143*16	50	DDMA480*464*16
24	DDMA160*148*16	51	DDMA500*484*16
25	DDMA170*158*16	52	DDMA560*544*16
26	DDMA180*168*16	53	DDMA600*584*16
27	DDMA190*178*16	54	DDMA630*614*16

Company Features
1. Dms Seals Technology Co.,limited has never been surpassed in technology and quality. We have been rated as the provincial trustworthy enterprise, and therefore received praises and rewards from the government. This serves as a strong driving force for our development.
2. We bring together the right sales team across China. They match our markets’ and clients’ needs in terms of knowledge, skills, and cultural background.
3. Staff is the greatest strength of our company. They actively contribute to the development of the company by voicing their opinions, asking questions, and suggesting solutions. Our consistent pursuit lies in high quality kit seal cylinder for every customer. Inquire now!
