DMS Seals Latest air cylinder piston seals factory price for light and medium hydraulic systems
1. Every detail of DMS Seals air cylinder piston seals is exquisitely crafted using the finest materials.
2. DMS Seals is fabricated combining with the simple and modern design concept.
3. For being manufactured by using the state-of-the-art technology, DMS Seals air cylinder piston seals represents the high level of craftsmanship.
4. DMS Seals is designed by our experienced designers that are leaders in the industry.
5. Every stage of the production process is strictly monitored to ensure the quality of this product.
6. Its quality is of high quality, meeting numerous needs of customers.
7. The quality of the product is reliable as it is in compliance with industry standards.
8. The quality of the product is maintained to meet the industry set norms and regulations by our strict quality management system.
9. This product uses a color scheme ideal for brand identity. It expresses the identity and enhances brand awareness with customizable logo.
10. Since our fabulous selection of bright colors does not fade after washing, this product offers a beautiful and elegant way to update the bedroom.
11. The use of the product helps manufacturers cut down labor costs, and shift the investment to other profit-generating things, such as brand advertising.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.

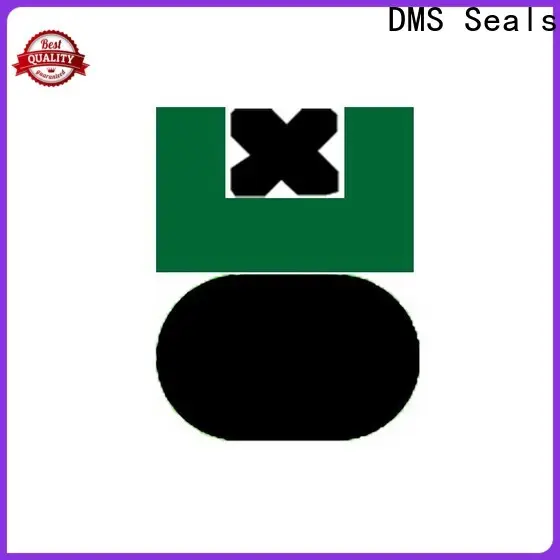

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. Dms Seals Technology Co.,limited, a nation-renowned developer and manufacturer, is known for its strong R&D and manufacturing competence in this field. Established as a manufacturing company, Dms Seals Technology Co.,limited mainly specializes in the researching, developing, manufacturing, and exporting of . For many years, Dms Seals Technology Co.,limited has been known as a renowned manufacturer, supplier, and exporter of air cylinder piston seals across China.
2. With advanced technology and equipment, Dms Seals Technology Co.,limited gains a high reputation among all other businesses in the circle. DMS Seals's processing center has advanced machine and professional testing equipment. With advanced technology and sophisticated equipment, Dms Seals Technology Co.,limited fully controls the quality of its products. Dms Seals Technology Co.,limited has gathered a group of high-level researchers.
3. We stick to sustainable development. We keep eco-friendly manufacturing, reduce waste through reuse and building quality products that last and thereby promoting sustainability. We take steps to maintain sustainable development. We minimize energy consumption and lower production waste while thinking highly of environmental impacts. We are going to align our organization, suppliers, and partners to focus on providing unique solutions to our customers and for improving our operation. We have adopted the policies for sustainability. We use the newest technologies and methods to produce our products, reducing emissions and increasing recycling.
