DMS Seals Latest hydraulic cylinder gaskets factory for sale

Company Advantages
1. The design of DMS Seals always follows the latest trend and will never go out of style. Its particular structure design is finished by utilizing CAD software. DMS Seals' production equipment and test equipment are on the leading level in the industry
2. Anytime you place order for our hydraulic cylinder gaskets , we will make fast response and deliver at our earliest time. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
3. Compared to other products in the market, DMS Seals product is more excellent in over performance. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
4. Multiple times of testing are conducted to ensure its quality. DMS Seals takes the lead in grasping the development trend of the industry

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

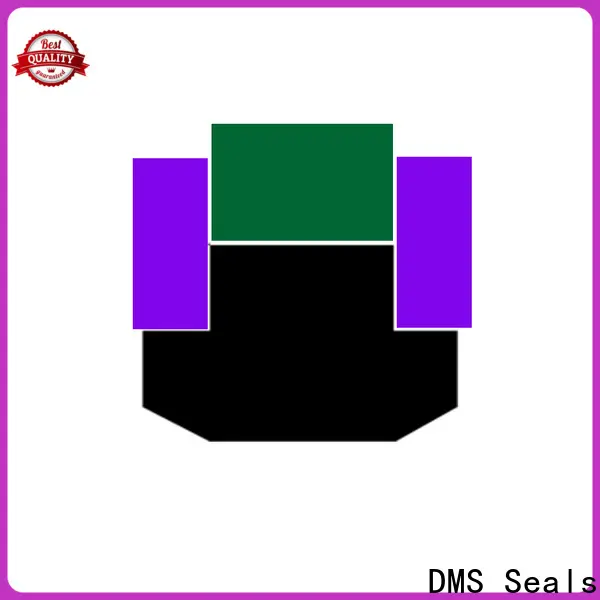

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited provides customers with excellent cost performance hydraulic cylinder gaskets .
2. Dms Seals Technology Co.,limited has excellent, professional technical team, proficiency in the international and domestic advanced dental technology.
3. We are constantly striving to find more sustainable solutions. We consciously minimize the environmental impact during the entire life cycle of our products, including recycling and disposal.
