DMS Seals Latest hydraulic cylinder seal design with nbr or fkm o ring for sale 1

DMS Seals Latest hydraulic cylinder seal design with nbr or fkm o ring for sale 2

DMS Seals Latest hydraulic cylinder seal design with nbr or fkm o ring for sale

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+200℃

Speed:

1m/s

Medium:

hydraulic oil, water and emulsion

Inquiry

Enterprise Strength

Dms Seals is committed to providing the best products and services for customers.

Company Advantages
1. DMS Seals is designed by innovative professionals using finest quality materials.
2. DMS Seals are designed by experienced and creative designers using the advanced design concept.
3. DMS Seals is made of good-quality materials and beautifully crafted by skilled worker.
4. DMS Seals is manufactured by highly qualified and experienced staff using the advanced production technology.
5. DMS Seals has a special design and appearance.
6. Our professional quality control team and authoritative third parties have conducted a serious and rigorous review of product quality.
7. The product has been inspected to strict quality standards.
8. This product is highly regarded among customers, with high durability and high cost performance.
9. Hot sell in .
10. Along the way, Dms Seals Technology Co.,limited has transformed itself into a competitive company with hydraulic cylinder seal design as its core business.
11. Our main business focuses on the development and production of high quality hydraulic cylinder seal design , which creates our leadership in the field of .
12. DMS Seals is the preferred brand in hydraulic cylinder seal design industry.
13. As technology widespreadly applied, Dms Seals Technology Co.,limited's research and development capabilities is improved.

Installation Recommendation

undefined

Application and properties

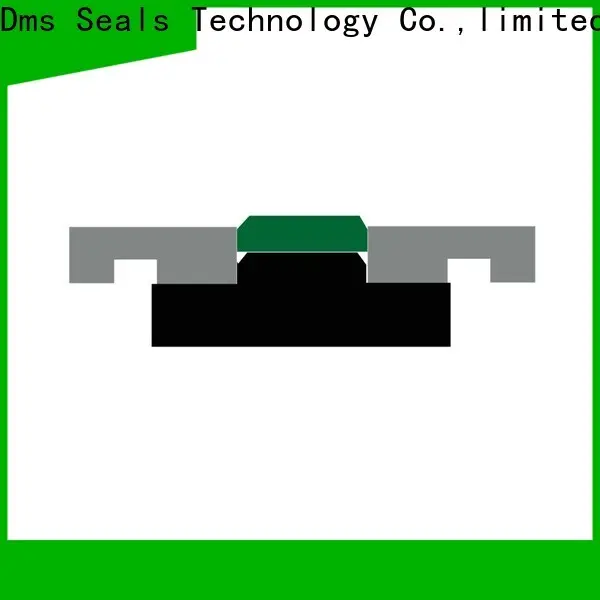

Apply to cylinder piston，Consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Guide ring: filled PTFE / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, water and emulsion

Installation Dimensions

D	d	b	d2	d3	a	c	f	e	Order No.
40 45 50	26 31 34	30 30 32	32 37 42	36 41 46	3.5 3 3	15.5 15.5 20.5	7.25 7.25 5.8	7 7 7	DKDF402630 DKDF453130 DKDF503432
56 60 63	40 44 47	32 32 32	48 52 55	52 56 59	3 3 3	20.5 20.5 20.5	5.8 5.8 5.8	7 7 7	DKDF564032 DKDF604432 DKDF634732
65 70 75	49 54 59	32 32 32	57 62 67	61 66 71	3 3 3	20.5 20.5 20.5	5.8 5.8 5.8	7 7 7	DKDF654932 DKDF705432 DKDF755932
80 85 90	62 67 72	36 36 36	72 77 82	76 81 86	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	7 7 7	DKDF806236 DKDF856736 DKDF907236
95 100 105	77 82 87	36 36 36	87 92 97	91 96 101	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	7 7 10	DKDF957736 DKDF1008236 DKDF1058736
110 115 120	92 97 102	36 36 36	102 107 112	106 111 116	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	10 10 10	DKDF1109236 DKDF1159736 DKDF12010236
125 130 135	103 108 113	43 43 43	115 120 125	121 126 131	4 4 4	26.5 26.5 26.5	8.3 8.3 8.3	10 10 10	DKDF12510343 DKDF13010843 DKDF13511343
140 145 150	118 123 128	43 43 43	130 135 140	136 141 146	4 4 4	26.5 26.5 26.5	8.3 8.3 8.3	10 10 10	DKDF14011843 DKDF14512343 DKDF15012843
155 160 170	133 138 148	43 43 48	145 150 160	151 156 166	4 4 6	26.5 26.5 26.5	8.3 8.3 10.8	10 10 10	DKDF15513343 DKDF16013843 DKDF17014848
180 190 195	158 165 170	48 48 48	170 180 185	176 186 191	6 4.5 4.5	26.5 31.5 31.5	10.8 8.3 8.3	10 10 10	DKDF18015848 DKDF19016548 DKDF19517048
200 210 220	175 185 195	48 58 58	190 200 210	196 206 216	4.5 8 8	31.5 31.5 31.5	8.3 13.3 13.3	10 12 12	DKDF20017548 DKDF21018558 DKDF22019558
235 240 250	210 215 225	74 74	225 230 240	231 236 246	15 15 15	31.5 31.5 31.5	21.3 21.3 21.3	12 12 12	DKDF23521074 DKDF24021574 DKDF25022574
265 270 275	240 245 250	74 74 74	255 260 265	261 266 271	15 15 15	31.5 31.5 31.5	21.3 21.3 21.3	12 12 12	DKDF26524074 DKDF27024574 DKDF27525074

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited has earned a wealth of expertise in the production of . Our ability in R&D and manufacture has made us an expert. With a focus on the R&D, design, and production of , Dms Seals Technology Co.,limited has been a reliable developer, manufacturers, and supplier. Dms Seals Technology Co.,limited is a professional developer and manufacturer of . We have transcended most other competitors in the market.
2. The technical key indicators of hydraulic cylinder seal design products have reached the international advanced level. Dms Seals Technology Co.,limited has a high-quality professional production team. Dms Seals Technology Co.,limited enjoys lots of advanced production equipment and a professional R&D and production team. To be with high quality, hyd seal has gained much reputation among customers. Dms Seals Technology Co.,limited has strong new product development and manufacturing capabilities.
3. Dms Seals Technology Co.,limited adheres to the development strategy of in its business. Call! It is of great practical significance for Dms Seals Technology Co.,limited to stick to . Call! Regarding as the source power has been driving us to improve better. Call!

DMS Seals Latest hydraulic cylinder seal design with nbr or fkm o ring for sale

hydraulic cylinder seal design

Type:

DMS Seals Latest hydraulic cylinder seal design with nbr or fkm o ring for sale 5

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
