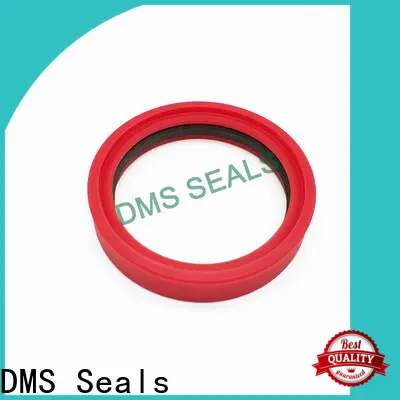

DMS Seals Latest link seal supplier supply for larger piston clearance

Company Advantages
1. DMS Seals is processed from smooth and well-controlled production lines.
2. The design of DMS Sealslink seal supplier is practical and subtle, close to the market trend.
3. The raw materials of DMS Seals are high quality and sourced from premium suppliers.
4. Being widely recognized by more customers, it turns out to be effective that DMS Seals needs to also pay attention to the design of link seal supplier .
5. Quality assurance: the product is under strict quality control procedure during production and careful inspection before delivery. All these measures make contributions to quality assurance.
6. We implement quality control system to ensure products without defects.
7. Our professional quality control team and authoritative third party have carefully and rigorously reviewed the product quality.
8. It is possible to achieve almost unlimited unique and elegant forms of design thanks to the flexible nature of this product.
9. If washed with hot water or dried with a dryer, the product is not easy to shrink.
10. This product can help improve comfort, posture and general health. It can reduce the risk of physical stress, which is beneficial for overall wellbeing.
11. When customized, the colorful graphics and innovative shapes will make this product a part of a creative marketing strategy.
12. The product can cut production costs. It is capable of meeting the most demanding production needs by using little efforts and money.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited is a preferred manufacturer of link seal supplier with steady quality and steady price. Dms Seals Technology Co.,limited has been absorbed in the manufacture and supply of truck seal supplier exquisite in technology and excellent in craftsmanship. As an excellent lip seal manufacturers maker, Dms Seals Technology Co.,limited is trusted by clients. With the technological advantages, Dms Seals Technology Co.,limited has experienced rapid development in the shaft seal manufacturers market.
2. Dms Seals Technology Co.,limited's production base has advanced mechanical processing equipment and modern management system. Dms Seals Technology Co.,limited has strong technical force, advanced equipment, perfect management and comprehensive service. DMS Seals's technical support team is composed of a group of dedicated technical engineers. Dms Seals Technology Co.,limited has carried out the plan of introducing high-end technology to produce o ring seal manufacturers .
3. We decided to become one of the most popular suppliers. Call! Dms Seals Technology Co.,limited aims to be a sensational international brand. Call! DMS Seals continues to evolve to meet rapidly changing market needs. Call! Our best to you and your oil seal manufacturing process from the team at DMS Seals. Call!

DMS Seals Latest link seal supplier supply for larger piston clearance

link seal supplier

Type:
