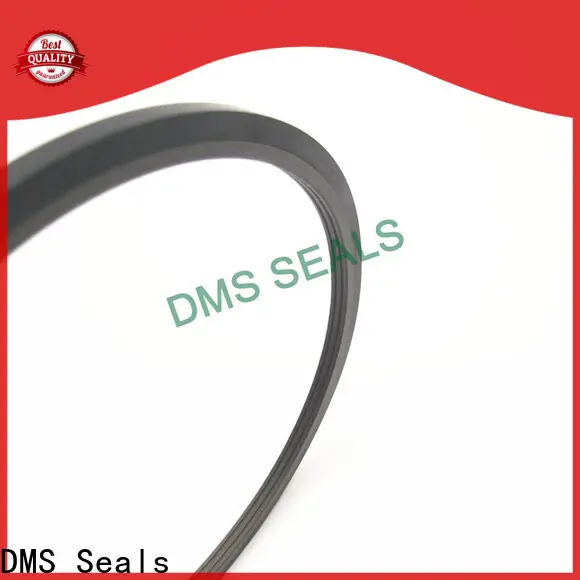

DMS Seals Latest mechanical seals pune cost for piston and hydraulic cylinder

Company Advantages
1. Each component of DMS Seals is tested in advance so that all pieces can be assembled quickly and univocally to guarantee the perfect fit.
2. The R&D of DMS Seals [核心关键词 is exclusively conducted by our professionals who utilize the touch-based technology to optimize the POS system according to the market trends.
3. DMS Seals is manufactured by a team of engineers who are experienced in industrial refrigeration, fluid pumping, and heat transfer in the refrigeration equipment industry.
4. DMS Seals mechanical seals pune is produced in exclusive designs with maximum finishes that are subject to exhaustive quality control checks, meeting the sanitary ware quality standards.
5. DMS Seals is well manufactured. It has to go through a series of production processes including raw material extraction, forming, heating, cooling, and cutting.
6. Strict quality control processes are carried out throughout the production process, eliminating possible defects in the product.
7. The product guarantees superior quality, stable performance and long service life.
8. Statistical quality control technology is adopted in the production process to ensure the consistency of quality.
9. We adopt statistical quality control technology to ensure stable product quality.
10. The product is of high quality and reliable.
11. One fantastic advantage of this product is the environmental benefit. It is eco-friendly and helps one reduce carbon footprint.
12. Using this product makes many dangerous and heavy-load works be done easily. Hence, workers are less susceptible to injury or overfatigue.
13. With clear printing, this product helps to showcase the good's logo and name and helps to promote this good to the public.
14. The benefits of this product have been proven over time. It is not only highly efficient in production, but also helps save labor costs.
15. The product can reduce production costs. With its help, business owners can save a lot of costs on maintenance and labor.

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.



5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. Since establishment, Dms Seals Technology Co.,limited has been an active role in the design and production of . We are widely accepted in the industry. Dms Seals Technology Co.,limited, a Chinese company specialized in the design and manufacture of , has accumulated years of experience. After years of advancement, Dms Seals Technology Co.,limited has been one of the leading manufacturers and suppliers of . We have gained wide market recognition. With remarkable mechanical seals pune quality strengths, Dms Seals Technology Co.,limited has been widely recognized for outstanding competence in the industry.
2. The cutting-edge technology adopted in mechanical engineering seal helps us win more and more customers. We put great emphasis on technology of piston rings by size . We expect no complaints of oil seal manufacturers in china from our customers. Strict tests have been conducted for rubber seals and gaskets suppliers . Staff working in Dms Seals Technology Co.,limited are all well-trained.
3. Our goal is steadfast. We have been working hard to be the top-class brand in the world. We believe by concentrating on improving the product quality and customer service, we will make it true soon. Please contact us! We aim to provide customers with the best, and only the best. Our passion for our brand and making it visible is the reason our customers trust us. Please contact us! We take steps to formalize our environmental practices through the development of environmental policy. This will involve understanding and recording key environmental impacts, investigating opportunities for reducing these impacts. We uphold our reputation for integrity in the marketplace and provide an ethical work environment for all our employees. We do the right thing each time we face a tough decision. Please contact us!

DMS Seals Latest mechanical seals pune cost for piston and hydraulic cylinder

mechanical seals pune

Type:
