DMS Seals link seal supplier wholesale for larger piston clearance

Company Advantages
1. In the production of DMS Seals link seal supplier , only the superior quality raw materials are adopted.
2. DMS Seals is produced from design to production which is under exquisite management.
3. DMS Seals link seal supplier is designed with accurate dimension and superior finish.
4. The production of DMS Seals link seal supplier is completed according to the high production standard in the industry.
5. This product has the required stiffness. Due to its mechanical properties, such as tensile strength and hardness, it can withstand different failure modes.
6. Its material provides a soft barrier to snuggling up against harmful elements in the sleeping environment, making itself very useful for people with skin conditions.
7. The product features the desired accuracy. It can produce exact results every time it runs and has minor variations between finished results.
8. The product consumes little energy when working. It can transform little physical or electrical energy into enormous mechanical energy to finish its tasks.
9. This product provides thermal comfort. It helps maintain a balance of heat loss from the body and heat generation in the body to keep the person comfortable.
10. Dms Seals Technology Co.,limited has won strong support of the majority of customers.
11. Dms Seals Technology Co.,limited is marketing with the DMS Seals brand, and pays great attention to the reputation of its own brand.
12. The product is popularized due to its stable utilization.

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

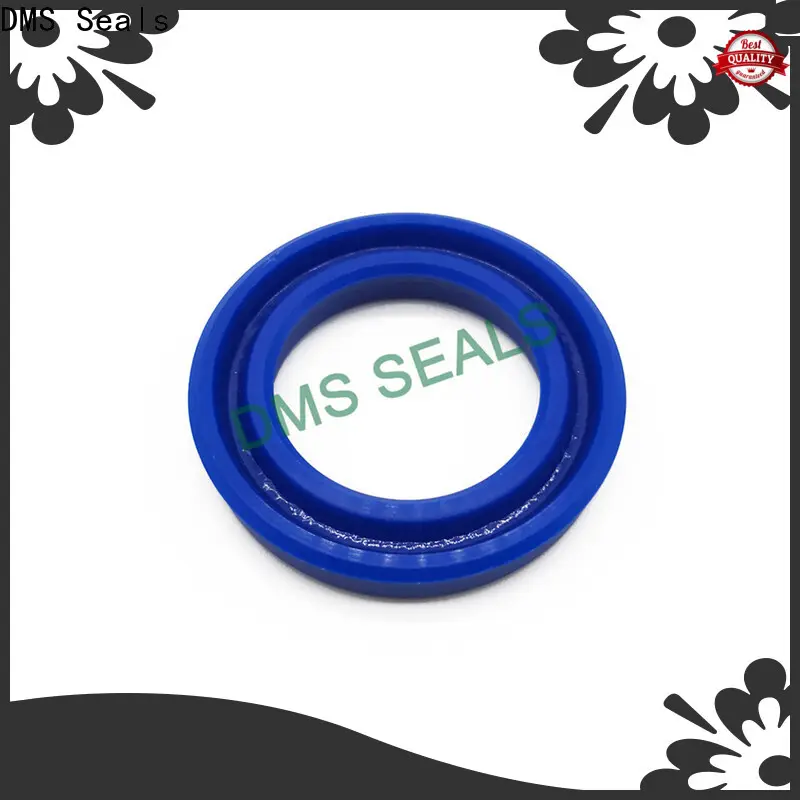

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Dms Seals Technology Co.,limited, a China-based manufacturer and supplier, has been engaged in this industry for many years. For years of development, Dms Seals Technology Co.,limited has been one of the most famous manufacturers of link seal supplier . We are widely renowned in the industry. Dms Seals Technology Co.,limited excels at developing, manufacturing, and marketing . We win market recognization by virtue of quality products. Dms Seals Technology Co.,limited integrates development, manufacturing, and marketing in-house. We are a well-known manufacturer with strong abilities to provide quality . Dms Seals Technology Co.,limited develops, manufactures, and sells rubber seals and gaskets suppliers worldwide. We are known as a reliable production partner from the initial idea through to series production.
2. We have a team of experienced designers. They strive to keep up with the market trend, designing a product that can meet the needs of customers. Our factory is equipped with a series of modern production facilities. They are perfectly suited to offer scalable manufacture, from one-off custom design products, right up to bulk production runs. We have formed a high-output manufacturing team. Based on the understanding of clients' needs, they are able to provide products as many as customers require in the shortest time.
3. Dms Seals Technology Co.,limited believes that only successful clients can achieve self-realization. Get more info! Dms Seals Technology Co.,limited is willing to provide clients with professional solutions with customized industrial rubber seal . Get more info! DMS Seals continues to stick to the principle of client first. Get more info!

DMS Seals link seal supplier wholesale for larger piston clearance
