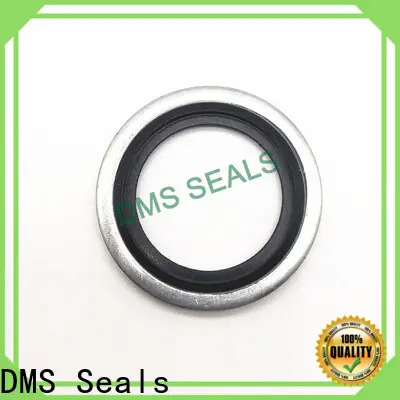

DMS Seals m14 dowty washer price for threaded pipe fittings and plug sealing

Company Advantages
1. The production of DMS Seals is strictly carried out. It is treated under high temperature and high pressure to ensure the best luminous efficiency.
2. To guarantee a good electrical contact, DMS Seals m14 dowty washer is carefully treated both in components soldering and oxidation. For example, the metal part of it has been exquisitely handled with paint to avoid oxidation or corrosion.
3. The production of DMS Seals covers a wide range of stages, ranging from materials preparation, formula creation, materials mixing, calcination, moulding, glazing, etc.
4. DMS Seals m14 dowty washer is manufactured through a series of processes to harmonize the needs of hygiene with the aesthetics of enduring simplicity and beauty.
5. The production environment of DMS Seals is required to be neat, clean, noise and dust free. Workers are required to wear dust suit in the work plant.
6. The product has reliable performance in even the most demanding applications.
7. Its quality is strictly checked by quality inspection department from the raw material to the shipment process.
8. This product enjoys long service time for its sophisticated quality.
9. The product performs more stable compared with other products in the market.
10. When people are wearing this product, for instance, they will effortlessly get the desired elegant and fashion look from it.
11. The product not only saves much electricity consumption in applications of the architecture but also it contributes a lot in protecting our environment.
12. The product makes employees' everyday tasks become easier and faster and helps reduce the waiting time for the customer.

1. Applicability of the Bonded Seal Washer

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Best quality bonded seal wholesale, welcome to contact the leading bonded seal rings and bonded washers suppliers.

Company Features
1. DMS Seals is great at incorporating designing, manufacturing and promotion of m14 dowty washer . As a well-known firm, Dms Seals Technology Co.,limited always focuses on dowty seal ring . Dms Seals Technology Co.,limited is a great manufacturer in the industry of metric dowty seals .
2. Dms Seals Technology Co.,limited is based on market demand and relies on technological innovation. Dms Seals Technology Co.,limited highly values the introduction of cutting edge technology and advanced production equipment. Dms Seals Technology Co.,limited has advanced production conditions.
3. Dms Seals Technology Co.,limited guarantee high quality service for its costumers. Call now! Dms Seals Technology Co.,limited aims to build itself into a mainstay for metric dowty washers industry. Call now! We always abide tenet to . Call now! Dms Seals Technology Co.,limited maintain a pragmatic approach to dowty bonded seal development. Call now! Dms Seals Technology Co.,limited is striving to become a world-class manufacturer of dowty o ring sizes . Call now!
