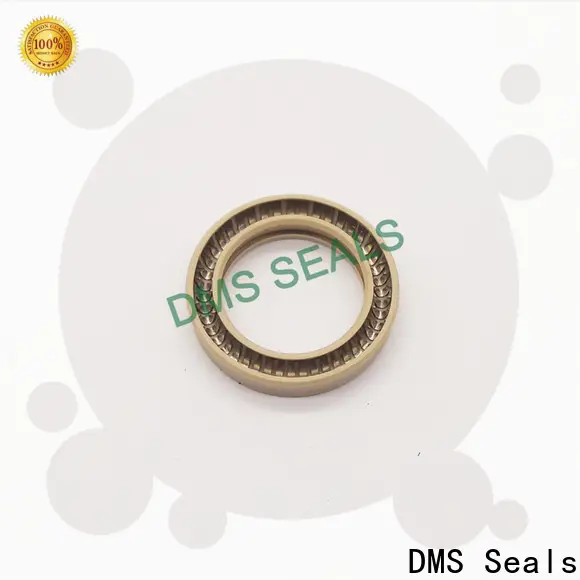

DMS Seals mechanical shaft seals springs cost for reciprocating piston rod or piston single acting seal

Company Advantages
1. The improved process of DMS Seals mechanical shaft seals springs reduces existing errors.
2. Fashionable patterns of mechanical shaft seals springs are available for customer's random selection.
3. With material, mechanical shaft seals springs has a better quality.
4. Being made by advanced production techniques, DMS Seals mechanical shaft seals springs is delicate in appearance.
5. mechanical shaft seals springs from Dms Seals Technology Co.,limited constantly exceeds the customers expectations.
6. It is smooth and soft. During the production process, the raising process is carried out to treat the surface of the fabric with sharp teeth, thereby lifting the surface fibers and imparting hairiness and softness.
7. This hypoallergenic product is a masterpiece crafted with durable hems and precise stitching, which makes it excellent longevity.
8. The product features good waterproof performance. Its housing is well sealed to effectively prevent water or moisture from entering into the circuit boards.
9. The product does not have a defect, that is, an overall failure of the product or reduced availability of the product that prevents the product from being placed on the market, which may include seams, holes or broken wires.
10. Dms Seals Technology Co.,limited has a strong R&D team and passed ISO90001 certification.
11. Dms Seals Technology Co.,limited emphasize quality oversight of qualification activities in manufacturing area.
12. Dms Seals Technology Co.,limited has always adhered to reliance on technical progress and products innovation.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Dms Seals Technology Co.,limited has many years of experience in the development and production of mechanical shaft seals springs . We have become an expert in this industry. As a company with years of experience in domestic and foreign market sales, Dms Seals Technology Co.,limited is a highly reputable company specializing in the manufacturing of . Dms Seals Technology Co.,limited is more than a qualified manufacturer of , but also a reliable partner for our customers around the world.
2. Our modern factory runs smoothly under comprehensive safety protocols. This means that our workers are able to produce our products as efficiently and safely as possible. We have excellent employees. Beyond their strong product and systems knowledge as well as technical competence, those men and women uphold the strong values that define our company culture. We have been keeping favorable connections with all clients over these years, and we have accumulated many loyal clients around the globe. They are clients mainly from America, Canada, and some Europe countries. Our company has a state-of-the-art R&D department. In terms of research and development, we are willing to invest more than average energy and cost.
3. We' re putting efforts on the impacts we made on the environments. In our production, we constantly use innovative methods that can minimize the ecological impact of our production waste. Customers' satisfaction rate remains a top priority in our operation. We will increase professional training themed on customer service, with an aim to strengthen employees' communicative skills and problem-solving ability. To ensure timely delivery, we use an efficient project management system. It allows us to invite all our managers and assign tasks to them within a given time frame. Get an offer! We will adopt an energy management plan as an effort to reduce resource wastes. We execute this plan seriously throughout the production stages.
