DMS Seals metric thrust bearings factory for sale

Company Advantages
1. The production of DMS Seals meets the mandatory regulations stipulated in the national standards. All of its metal ingredients such as mercury and lead are guaranteed to be controlled in a safe limit. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
2. The product is able to help increase the safety of the working environment. By using this product, workers are not prone to injury. DMS Seals takes the lead in grasping the development trend of the industry
3. The product is safe during operation. It is equipped with overloading and overheating protection system to avoid sudden breakdown or electric hazards. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. This product will not easily gather bacteria. The antibacterial agent is used into its fabric, and its antibacterial effect is up to 99%. DMS Seals' production equipment and test equipment are on the leading level in the industry

1. Installation Recommendation

2. Application and properties

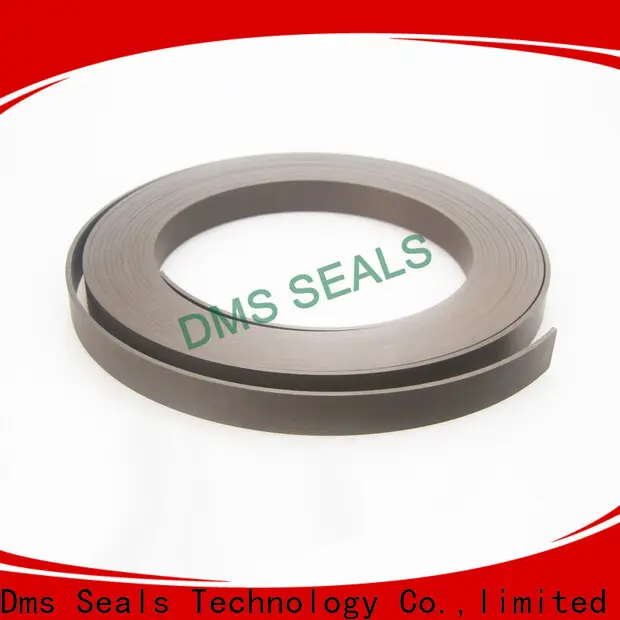

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Through years of innovation and development, we have built our company into an international one, with business interests in many countries and regions across all five Continents.
2. To establish the service philosophy of is the base of Dms Seals Technology Co.,limited's work. Ask online!
