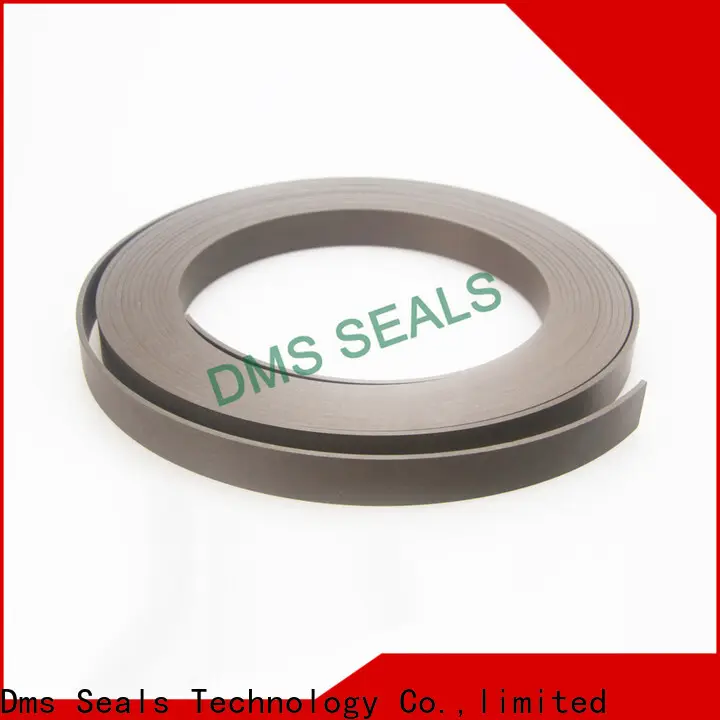

DMS Seals mini roller bearings guide strip for sale

Company Advantages
1. DMS Seals is designed and developed as per international industrial standards using top quality raw materials. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. Most people who suffer from foot pain or plantar fasciitis say the product is useful for them. It helps people improve the wrong posture of shoe wearing, such as under or over pronation. Quality control of the seals is the basis for DMS Seals
3. mini roller bearings can be in normal work status at day and night. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
4. Experts have testified to the excellent performance of mini roller bearings form Dms Seals Technology Co.,limited. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. At present, most of the mini roller bearings series produced by us are original products in China.
2. We have a mutual dream of being an international ball bearing parallel manufacturer some day. Ask!
