DMS Seals molded seals factory price for light and medium hydraulic systems 1

DMS Seals molded seals factory price for light and medium hydraulic systems 2

DMS Seals molded seals factory price for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The necessary tests have been conducted on DMS Seals . These tests include tear strength testing, durability testing, structural stability testing, and slip resistance testing. DMS Seals provides professional design and production of high-grade o-ring seals
2. Dms Seals Technology Co.,limited grantees every we offered is a quality molded seals . Seal we produced has applications in a wide range of fields
3. makes molded seals to be operated well. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

Installation Recommendation

undefined

Installation Sizes

D H8	d h9	L+0.2	H
˂96	D-16.3	8	7.5
96-190	D-20	10	9.5
191-380	D-28	13	12.5
381-1000	D-36	20	19.5

Application and properties

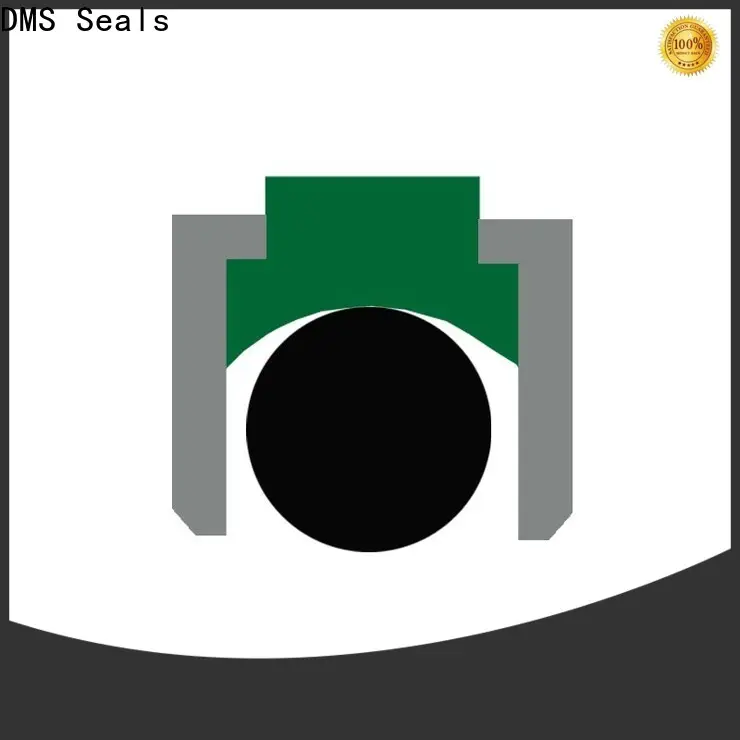

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L	e	Order No.
40 45 50	23.2 28.2 33.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA4023.27.5 DGDA4528.27.5 DGDA5033.27.5
56 63 65	39.2 46.2 48.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA5639.27.5 DGDA6346.27.5 DGDA6548.27.5
70 75 80	53.2 58.2 63.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA7053.27.5 DGDA7558.27.5 DGDA8063.27.5
85 90 95	68.2 73.2 78.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA8568.27.5 DGDA9073.27.5 DGDA9578.27.5
100 105 110	80 85 90	9.5 9.5 9.5	10 10 10	10 10 10	DGDA100809.5 DGDA105859.5 DGDA110909.5
115 120 125	95 100 105	9.5 9.5 9.5	10 10 10	10 10 10	DGDA115959.5 DGDA1201009.5 DGDA1251059.5
130 135 140	110 115 120	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1301109.5 DGDA1351159.5 DGDA1401209.5
145 150 155	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1451259.5 DGDA1501309.5 DGDA1551359.5
160 170 180	140 150 160	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1601409.5 DGDA1701509.5 DGDA1801609.5
190 200 210	170 172 182	9.5 12.5 12.5	10 13 13	10 12 12	DGDA1901709.5 DGDA20017212.5 DGDA21018212.5
220 225 235	192 197 207	12.5 12.5 12.5	13 13 13	12 12 12	DGDA22019212.5 DGDA22519712.5 DGDA23520712.5

Installation Dimensions

Company Features
1. Primarily engaging in the production of molded seals , Dms Seals Technology Co.,limited is equipped with modern production lines. The company has a group of excellent professionals who have a clear view of the trends and a broad outlook for the product market. They strive to propose further technological innovations and new solutions for product improvement.
2. We have an industry-leading R&D team. They have helped the company to launch numerous revolutionary technologies and materials to set the benchmark for the industry.
3. The factory owns comprehensive production facilities which can be controlled by machines or labor. These facilities are all made with high precision and quality, which makes sure less yield loss. Dms Seals Technology Co.,limited sticks to the development road of . Ask online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
