DMS Seals molded seals Supply for sale 1

DMS Seals molded seals Supply for sale 2

DMS Seals molded seals Supply for sale

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+200℃

Speed:

1m/s

Medium:

hydraulic oil, water and emulsion

Inquiry

Product Comparison

Good materials, advanced production technology, and fine manufacturing techniques are used in the production of Oil Seal Manufacturer. It is of fine workmanship and good quality and is well sold in the domestic market.Dms Seals's Oil Seal Manufacturer has more advantages over similar products in terms of technology and quality.

Company Advantages
1. The unique design makes DMS Seals more competitive in the industry.
2. The design of DMS Seals is aspired by the latest market trends.
3. Thanks to the team of diligent professionals, DMS Seals is manufactured according to the requirement of lean production.
4. The product is tested under the vigilance of our proficient professionals who clearly know quality standards laid down by the industry.
5. Effective QC system is carried out through the production of the product to ensure the consistent quality.
6. Whether incoming detection, production process supervision or finished product inspection, the production is done with the most serious and responsible attitude.
7. Dms Seals Technology Co.,limited has sufficiently superiority to develop molded seals .
8. We have many years of successful experience in manufacturing molded seals .
9. Dms Seals Technology Co.,limited has perfect quality insurance system, powerful research & develop ability for molded seals .

Installation Recommendation

undefined

Application and properties

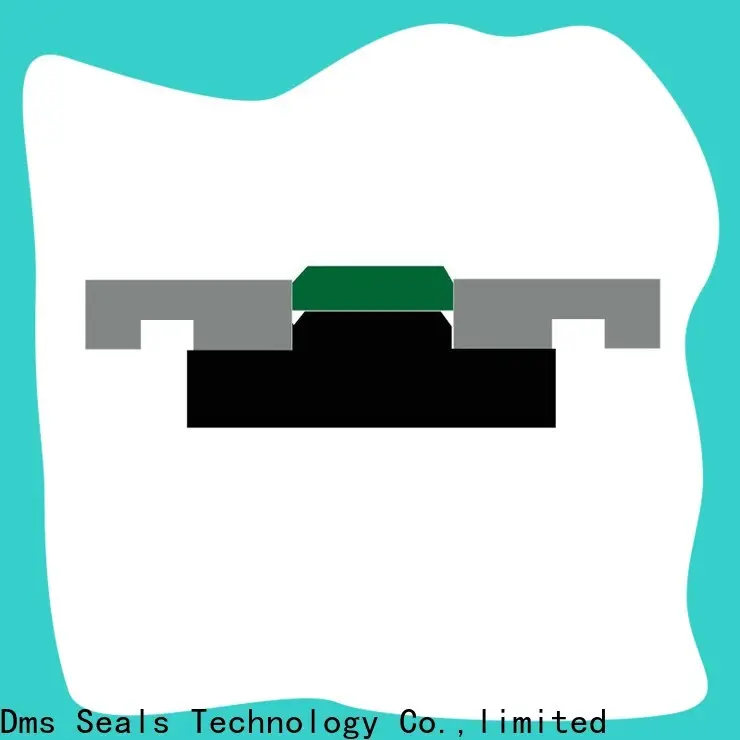

Apply to cylinder piston，Consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Guide ring: filled PTFE / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, water and emulsion

Installation Dimensions

D	d	b	d2	d3	a	c	f	e	Order No.
40 45 50	26 31 34	30 30 32	32 37 42	36 41 46	3.5 3 3	15.5 15.5 20.5	7.25 7.25 5.8	7 7 7	DKDF402630 DKDF453130 DKDF503432
56 60 63	40 44 47	32 32 32	48 52 55	52 56 59	3 3 3	20.5 20.5 20.5	5.8 5.8 5.8	7 7 7	DKDF564032 DKDF604432 DKDF634732
65 70 75	49 54 59	32 32 32	57 62 67	61 66 71	3 3 3	20.5 20.5 20.5	5.8 5.8 5.8	7 7 7	DKDF654932 DKDF705432 DKDF755932
80 85 90	62 67 72	36 36 36	72 77 82	76 81 86	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	7 7 7	DKDF806236 DKDF856736 DKDF907236
95 100 105	77 82 87	36 36 36	87 92 97	91 96 101	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	7 7 10	DKDF957736 DKDF1008236 DKDF1058736
110 115 120	92 97 102	36 36 36	102 107 112	106 111 116	3 3 3	22.5 22.5 22.5	6.8 6.8 6.8	10 10 10	DKDF1109236 DKDF1159736 DKDF12010236
125 130 135	103 108 113	43 43 43	115 120 125	121 126 131	4 4 4	26.5 26.5 26.5	8.3 8.3 8.3	10 10 10	DKDF12510343 DKDF13010843 DKDF13511343
140 145 150	118 123 128	43 43 43	130 135 140	136 141 146	4 4 4	26.5 26.5 26.5	8.3 8.3 8.3	10 10 10	DKDF14011843 DKDF14512343 DKDF15012843
155 160 170	133 138 148	43 43 48	145 150 160	151 156 166	4 4 6	26.5 26.5 26.5	8.3 8.3 10.8	10 10 10	DKDF15513343 DKDF16013843 DKDF17014848
180 190 195	158 165 170	48 48 48	170 180 185	176 186 191	6 4.5 4.5	26.5 31.5 31.5	10.8 8.3 8.3	10 10 10	DKDF18015848 DKDF19016548 DKDF19517048
200 210 220	175 185 195	48 58 58	190 200 210	196 206 216	4.5 8 8	31.5 31.5 31.5	8.3 13.3 13.3	10 12 12	DKDF20017548 DKDF21018558 DKDF22019558
235 240 250	210 215 225	74 74	225 230 240	231 236 246	15 15 15	31.5 31.5 31.5	21.3 21.3 21.3	12 12 12	DKDF23521074 DKDF24021574 DKDF25022574
265 270 275	240 245 250	74 74 74	255 260 265	261 266 271	15 15 15	31.5 31.5 31.5	21.3 21.3 21.3	12 12 12	DKDF26524074 DKDF27024574 DKDF27525074

Installation Dimensions

Company Features
1. Accumulating years of experience and expertise in the design and production of , we have become a reliable manufacturer and supplier in the industry. Based in China, Dms Seals Technology Co.,limited has a long-established reputation for the design, development, and manufacture of for customers across the world. Established years ago, Dms Seals Technology Co.,limited is a leader at the forefront of designing and manufacturing in China.
2. Dms Seals Technology Co.,limited has exceptional characteristics in scientific study and development. We’ve worked with folks here and with countless companies across China (and beyond). By stressing the importance of a true relationship with each customer to ensure that we thoroughly understand all aspects of their business, we obtain many repeat purchases. With advanced technology and production equipment, we can fully control the quality of our DMS Seals branded products. We have dedicated staff working alongside factory quality managers to monitor all production processes for compliance with rigid standards of quality, environment, and safety. Dms Seals Technology Co.,limited has a professional level and mature technology to participate in the production of high quality products.
3. Dms Seals Technology Co.,limited aims to fully introducing its molded seals into international markets. Get price! Dms Seals Technology Co.,limited is committed to providing professional services and reliable hydraulic packing kits . Get price! Dms Seals Technology Co.,limited can meet various geographic niches. Get price!

DMS Seals molded seals Supply for sale

molded seals

Type:

DMS Seals molded seals Supply for sale 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
