DMS Seals New ball bearing ppt manufacturers as the guide sleeve

Company Advantages
1. Defects exclusion work for DMS Seals will be carried out. The product will be inspected in terms of shades, holes, defective stitches, stains, and loose threads and yarns. DMS Seals' production equipment and test equipment are on the leading level in the industry
2. Dms Seals Technology Co.,limited has strong financial strength, strong employee cohesion, reliable product quality, and good reputation in ball bearing ppt field. Seal we produced has applications in a wide range of fields
3. The performance of the product has an irreplaceable advantage in the market. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals

1. Installation Recommendation

2. Application and properties

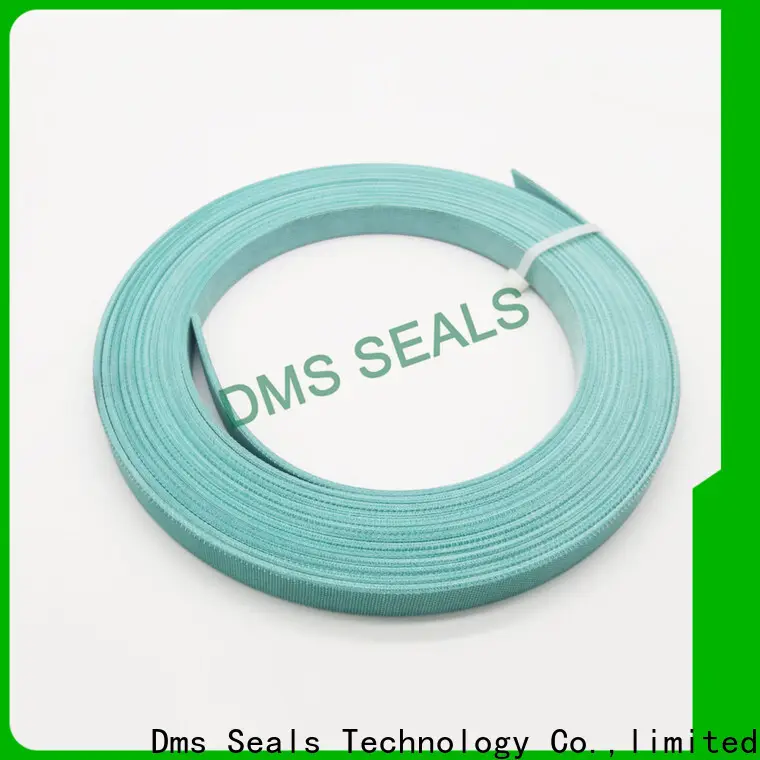

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

Phenolic resin

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	0-100 MPa	-60℃ +120℃	1 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Standard groove width and standard thickness

Standard groove width

Groove width L2

8.1

10

15

20

5.6

6.3

9.5

9.7

12.7

25

30

40

50

5

6

8

35

45

The products of various width could be provided.

Standard thickness of product

Thickness W

2

2.5

3

3.5

4

6

3.18

3.17

The products of various thickness could be provided.

Company Features
1. Dms Seals Technology Co.,limited includes a topnotch group of scientific and technical experts.
2. We adhere to the business philosophy of quality and innovation for our branded Bearing Element. Check now!
